4G LTE antenna YB0008AA
GNSSomnidirectionalexternal

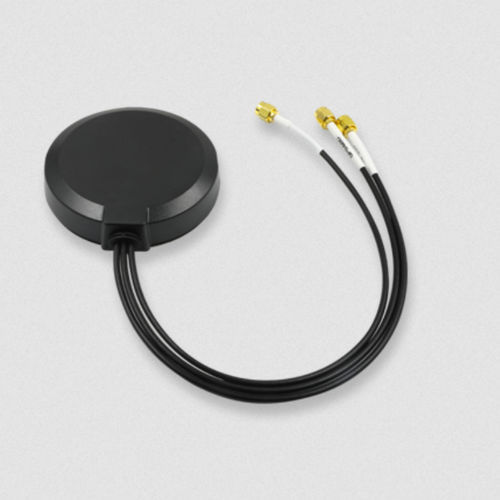

4G LTE antenna - YB0008AA - Quectel - GNSS / omnidirectional / external
4G LTE antenna - YB0008AA - Quectel - GNSS / omnidirectional / external
Add to favorites
Compare this product

Characteristics

Network
4G LTE, GNSS
Type
omnidirectional, external
Other characteristics
IP66
Frequency

Max.: 2,690 MHz

Min.: 698 MHz

Description

This 3-in-1 adhesive mount combo antenna supports 1 x 4G/LTE for main and diversity and 1 x GNSS connectivity. The YB008AA is designed to work with various GND plane sizes or in free space for ease of integration with connection via 3 cables 300mm long, terminated with SMA male connectors. This external omnidirectional antenna is easy to install with maximum durability and IP66 rated. Optional cable lengths and connector types available upon request. Quectel provides comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs. Key features Durable ABS + PC casing SMA Male (center pin) connector
