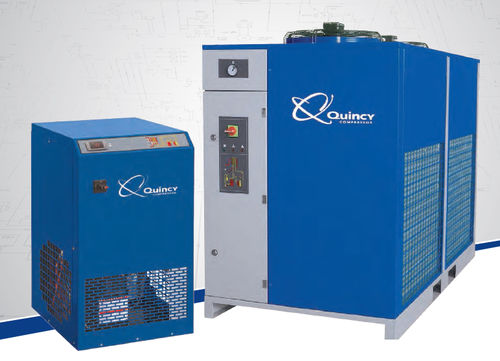

Refrigerated compressed air dryer QPNC series
two-stagenon-cycling

refrigerated compressed air dryer
refrigerated compressed air dryer
refrigerated compressed air dryer
refrigerated compressed air dryer
refrigerated compressed air dryer
refrigerated compressed air dryer
Add to favorites
Compare this product


Characteristics

Technology
refrigerated
Number of stages
two-stage
Other characteristics
non-cycling
Capacity

Min.: 10 ft³/min (0.28 m³/min)

Max.: 4,000 ft³/min (113.27 m³/min)

Working pressure

Min.: 0 psi

Max.: 150 psi

Description

Best Suited For Smaller Systems Expecting Fairly Constant Loads These units use a two-stage heat exchanger to maintain consistent dew points. Freeze-ups are prevented and optimum performance is maintained. The QPNC non-cycling compressed air dryers work by lowering the air temperature to 39°F, which causes the condensation of entrained moisture. The moisture is then directed to the specially designed moisture separator, where all liquids are removed. The cold, dry compressed air then returns through the first-stage heat exchanger for reheating by the incoming warm air. The QPNC is equipped with a non-cycling control panel, which provides easy and efficient operation. It also includes zero loss drains for maximum energy efficiency. The 10-year heat exchange warranty gives you comprehensive protection and peace of mind.
