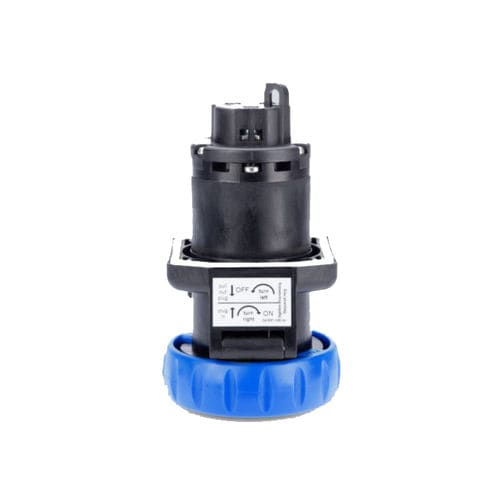

Built-in electrical socket 8572/15-306

IECExcorrosion-resistantIP55

Highlights - Zones 1, 2, 21, 22, degree of protection IP66 Full AC-3 switching capacity according to IEC/EN 60947-3 Wear-free, corrosion-resistant contacts even in aggressive atmosphere Functional Description - R. STAHL Series 8572/15 16 A compact flange sockets are suitable for 3-pole applications. The compact dimensions and internal rotary switch enable installation in various applications. Self-cleaning lamellar contacts made from high-quality material provide optimum contact. The integrated locking mechanism prevents disconnection under load. Explosion Protection Scope of validity - European Union (ATEX), IECEx Application range (zones) - 1, 2, 21, 22 IECEX gas certificate - IECEx PTB 16.0028U IECEx gas explosion protection - Ex db eb IIC Gb IECEx dust certificate - IECEx PTB 16.0028U IECEx dust explosion protection - Ex tb IIIC Db ATEX gas certificate - PTB 16 ATEX 1016 U ATEX gas explosion protection - II 2 G Ex db eb IIC Gb ATEX dust certificate - PTB 16 ATEX 1016 U ATEX dust explosion protection - II 2 D Ex tb IIIC Db Certificates - ATEX (PTB), China (CQST), IECEx (PTB) Mechanical Data Enclosure material - Polyamide, Glass fibre reinforced Silicone-free - No Solid connection cross-section - 1 x 0.75 mm2 ... 2 x 4.00 mm2 Connection cross-section AWG single stranded - 1 x AWG 18 ... 2 x AWG 10 Finely stranded connection cross-section - 1 x 0.75 mm2 ... 2 x 4.00 mm2 Finely stranded connection cross-section AWG - 1 x AWG 18 ... 2 x AWG 10 Width - 78 mm Width, inches - 3.070 in Height - 82 mm Height in inches - 3.2100 in Length - 139 mm Length in inches - 5.49 in Impact strength (IEC 62262) - IK10 Colour code - blue Series - SolConeX Weight - 380 g
