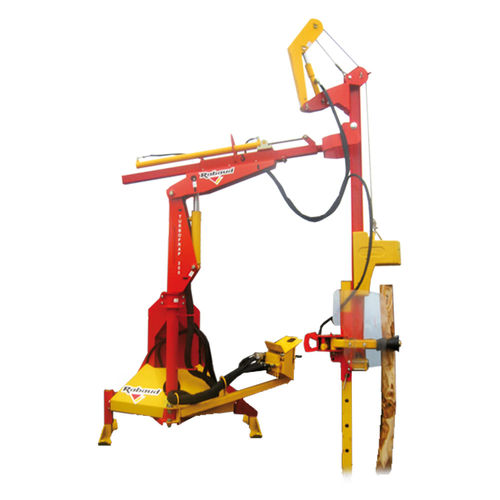

Hydraulic pile-driving hammer BREEDER / TURBOFRAP

hydraulic pile-driving hammer
hydraulic pile-driving hammer
hydraulic pile-driving hammer
hydraulic pile-driving hammer
hydraulic pile-driving hammer
hydraulic pile-driving hammer
hydraulic pile-driving hammer
Add to favorites
Compare this product


Characteristics

Specifications
hydraulic

Description

Hammer weighing 160 kg, grooved and concave, strikes flat on the post top. The tilting movement enables to drive posts always vertical and/or put tilted post. Compact machine with storage stands. Side shift: mechanical and/or hydraulic (50 cm range). Post-clamp: mechanical and/or hydraulic with guiding rollers for an excellent hold of the post during the driving process. Post driver with pendular mast TURBOFRAP 200: More than 200° rotation, the greastest on the market. Posts from 0.45 m up to 3.00 m (3.50 m in option) always vertical. Maximum striking power: 1618 joule/meter with 160 kg hammer. Hydraulic side shift of 1m, it is 2.50 m from the tractor axis allowing to work on hard slopes, beyond an obstruction like a ditch, a gap or a bank slope. Very compact machine with a very low-placed centre of gravity for a good stability. Automatic coupling with stabilising braces. Hammer mounted on plastic blocks = no lubrication needed.

VIDEO

*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
