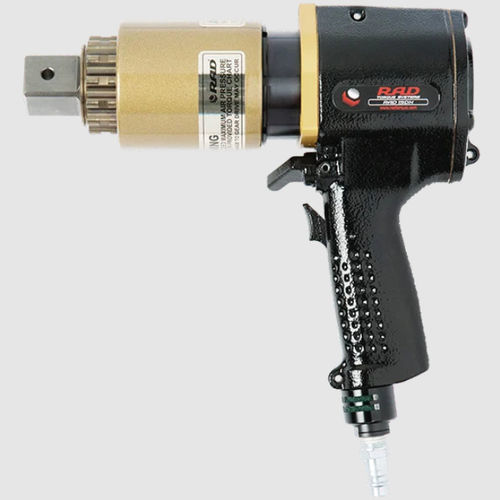

Pneumatic torque wrench 34GX-2-M
1"pistoltwo-speed

Pneumatic torque wrench - 34GX-2-M - RAD Torque Systems - 1" / pistol / two-speed
Pneumatic torque wrench - 34GX-2-M - RAD Torque Systems - 1" / pistol / two-speed
Pneumatic torque wrench - 34GX-2-M - RAD Torque Systems - 1" / pistol / two-speed - image - 2
Pneumatic torque wrench - 34GX-2-M - RAD Torque Systems - 1" / pistol / two-speed - image - 3
Add to favorites
Compare this product

Characteristics

Type
pneumatic
Drive size
1"
Other characteristics
pistol, two-speed
Torque

Min.: 950 Nm
(700.684 ft.lb)

Max.: 3,400 Nm
(2,507.7113 ft.lb)

Length

308 mm
(12.1 in)

Sound level

80 dB

Weight

7.5 kg
(16.535 lb)

Description

•Two-speed models feature a unique fully automatic gearbox design, eliminating the time-consuming switch between high and low speed gear •Smooth continuous flow of controlled torque eliminating destructive hammering •Faster run down on time sensitive bolting applications reaching speeds as high as 80 RPM •RAD High Speed pneumatic torque wrenches reduce operator strain and injury, resulting in increased productivity •Controlled torque with an accuracy of +/- 4% on target and repeatability of +/- 2% Automatic Two-Speed Technology with High RPM for Fast Rundown. The RAD High Speed Torque Wrench is designed to increase productivity in demanding bolting applications. By starting with a higher RPM for fast rundown and automatically switching to a lower speed for precision tightening, the tool allows operators to complete bolting tasks faster without sacrificing torque accuracy. This high-speed design helps reduce overall bolting time while maintaining the reliability expected from RAD pneumatic torque tools. The adjustable speed control system allows operators to fine-tune performance, making it a versatile solution for industrial pneumatic bolting applications. All RAD pneumatic tools include: •Reaction arm and snap ring •Hose and fittings •Tool holder with FRL unit •Operator’s manual •Calibrated to ISO 17025 •Safety instruction available on USB flash drive

VIDEO
