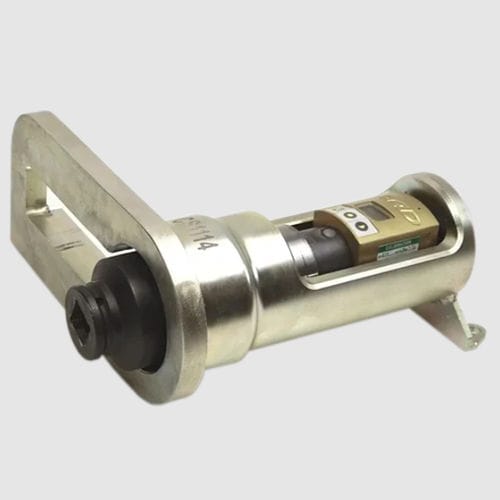

Static torque transducer 33736

square drive

•Five models available •Individually calibrated and traceable to NIST standards to ensure joint integrity •Verifies that wrench is operating at maximum efficiency and safety levels •Ensures torque wrench accuracy Torque Wrench Calibration System – High Accuracy + Repeatability and Convenient Reading RAD offers two trusted calibration solutions: 1) Transducer-based systems 2) Smart Socket™ connected systems RAD Calibration Systems are classified to BS7882:2017 as Class 1 or better for the primary range (+/- 0.5% of reading from 20% to 100% of full scale). Each system comes fully calibrated and traceable to ISO 17025 standard ensuring the highest measurement of quality. Ranges up to 75 – 15,000 ft. lbs. (100 – 20,000 Nm) Backward compatible and will suit previous generation RAD calibration benches Small Calibration System The RAD small calibration system uses a transducer and comes in three different sizes (1500/3500/7500). This system includes a calibration stand, static transducer, and a windows based tablet with RAD Calibration Software. Large Calibration System The RAD large calibration system has the power to calibrate tools up to 15K ft. lbs/20K Nm. The Large Calibration Stand is paired with RAD’s Smart Sockets (12K and 18K*) to calibrate in two different ranges. (Note: Tablet not included with Large Calibration System)
