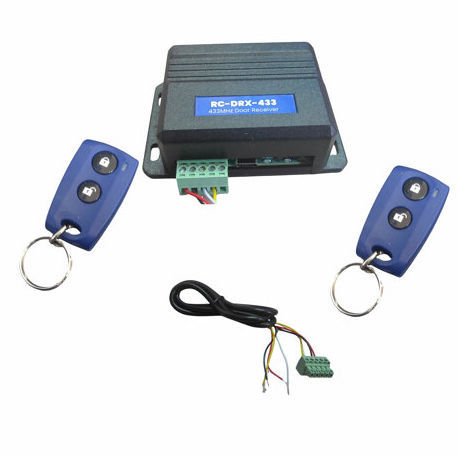

Wireless access control door interface RC-DCK-433

Overview
The RC-DCK-433 Wireless Door Control Kit is a professional RF solution to control and activate automatic doors, gates and access systems without wired connections between control devices and automation units. It reduces installation time, wiring complexity and cost, making it suitable for both retrofit and new installations.

Main benefits

• No wiring between devices
• Full software configuration (PC configurable via USB-C)
• Fast installation and commissioning
• High flexibility for different automation setups
• Reliable 433 MHz RF technology
• Reduced installation errors and maintenance effort

Operating band and performance
The kit operates in the 433 MHz band (operating frequency 433.92 MHz), a standard for short- and medium-range wireless links. The radio design provides stable performance, good resistance to interference and long-term reliability in industrial and commercial environments.

Technical Characteristics (summary table)

• Operating Voltage Transmitter (RCTV-08): CR2032 (3.0 V)
• Operating Voltage Receiver Unit (RC-DRX-433): 9.0 ÷ 15.0 V DC
• Supply Current Transmitter (max): 7.0 mA
• Supply Current Receiver (max): 35.0 mA
• Operative Frequency: 433.92 MHz
• Emitted Radio Power Transmitter (max): 7.0 dBm
• Operative Temperature Range: -40 °C to 80 °C

Kit I/O and indicators (connector / pin mapping)

• Pin 1: Power Supply +12V DC/AC
• Pin 2: Power Supply GND DC/AC
• Pin 3: COM (Common)
• Pin 4: NO (Normally Open)
• Pin 5: NC (Normally Closed)
• Pin 6: USB type C for configuration
• Pin 7: Green LED (relay active)
• Pin 8: Not used (reserved for future use)
• Pin 9: Blue LED (command received)
• Pin 10: RESET
• Pin 11: Red LED (power on)

Included module examples & related module specs

• RC-TFSK3-434 — 433.92 MHz FSK transmitter, Vdc 2.4 ÷ 3.6 V, Current 14.5 mA, Power 10 dBm, Size 20.32 x 11.43 mm
• RC-TFSK4-434 — 433.92 MHz FSK transmitter, Vdc 2.4 ÷ 3.6 V, Current 14.5 mA, Power 10 dBm, Size 30.5 x 10.3 mm
• RC-TASK2-868 — ASK/OOK transmitter example with crystal, Vdc 2.2 ÷ 3.6 V, Current 21/15 mA, Frequency 868.30 MHz, Power 10 dBm, Size 20.32 x 11.43 mm

Characteristics / Specifications

• Product model: RC-DCK-433
• Operating frequency: 433.92 MHz
• Transmitter supply (example): CR2032 (3.0 V) for handheld transmitter (RCTV-08)
• Receiver supply: 9 ÷ 15 V DC (RC-DRX-433)
• Transmitter supply current (max): 7 mA
• Receiver supply current (max): 35 mA
• Emitted radio power (transmitter): up to 7 dBm
• Operating temperature range: -40 °C to 80 °C
• Kit I/O: COM / NO / NC relay outputs, +12 V power input, GND, USB type-C configuration port
• LED indicators: Green (relay active), Blue (command received), Red (power on)
• Configuration: Full software control via PC (USB type-C)
