4-axis CNC controller PC Pro LAN 4Afor cutting machinesfor milling machinesfor lathes
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Applications
- for cutting machines, for milling machines, for lathes, for grinding machines, for turning centers, for wood-processing machines, for plasma cutting machines, stone-processing machine, for drilling machines
- Number of axes
- 4-axis
- Other characteristics
- compact, embedded, PC-based
- Communication
- TCP/IP
- Input/output
- digital input, digital output, 2 analog outputs
Description

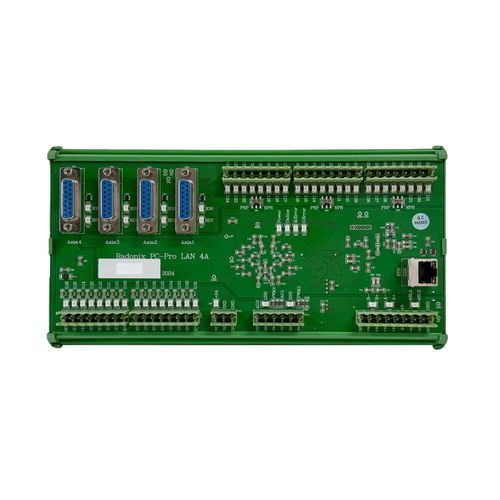

The Radonix PC-Pro LAN 4A stands out for its high-performance design, catering to four-axis CNC systems requiring enhanced speed and precision.
Axes: Up to 4 interpolated
Pulse Rate: Up to 500,000 pulses per second per axis
Digital I/O:
Inputs: 24 isolated NPN inputs
Outputs: 16 short-circuit-protected open-collector outputs
Analog Outputs: 2
PWM Outputs: 2 (adjustable frequency)
Buffer & Motion: 2,000-block FIFO, S-curve speed profile
Communication: 100 Mbps LAN (TCP/IP) with a 20 ms data cycle
Isolation: Optocoupler
Power: 16–32 V, 300 mA
System Compatibility: Windows 7, 8, 10, 11
Control Type: Open-loop
