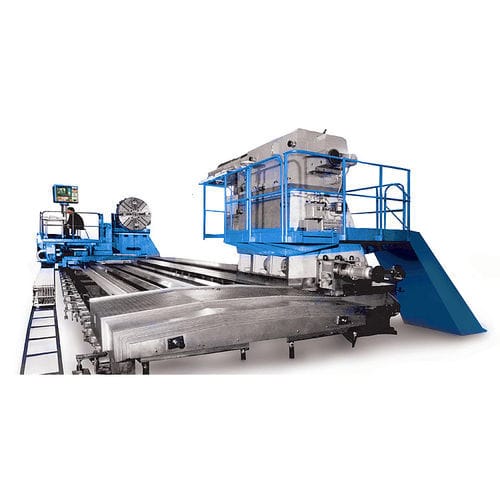

CNC turning center TZL 420drillingfor long workpiecesmilling
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Applications
- drilling, for long workpieces
- Other characteristics
- milling, finishing
- Diameter
Min.: 400 mm
(15.75 in)Max.: 4,200 mm
(165.35 in)- Spindle speed
Min.: 0.3 rpm
(1.885 rad.min-1)Max.: 100 rpm
(628.319 rad.min-1)- Rapids on X
4,000 mm/min
(3 in/s)- Rapids on Z
4,000 mm/min
(3 in/s)- Nominal power
150 kW, 200 kW
(203.9 hp, 271.9 hp)- Maximum torque
1,800 Nm
(1,328 ft.lb)- Overall lenght
7,000 mm
(276 in)- Overall width
4,350 mm
(171 in)- Overall height
3,500 mm
(138 in)- Weight
100 kg, 139 kg, 177 kg, 216 kg
(220 lb, 306 lb, 390 lb, 476 lb)
Description
The TZL 420 CNC lathe is designed for workpiece machining in the range of turning in accordance with the machine tool specifications, especially machining of large-size shafts and large-diameter workpieces. When delivered with special equipment it can operate as horizontal machining centre with turning, drilling and milling capabilities. It can be equipped with an automatic tool head, tool and workpiece measuring systems, controlled C axis, workpiece steady rests.
CONTROL SYSTEM
The application of the state-of-the-art CNC system allows for automatic, precise and productive workpiece machining according to a program.
Basic parameters
Max. weight carried between centres: - 80 tonnes
Turning length: - 5 m, 12 m, 19 m, 26 m
