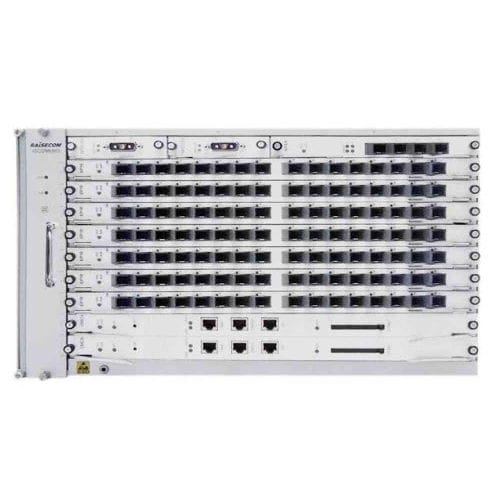

Rack-mount optical line terminal ISCOM6860

PON

The ISCOM6860 is a high-density carrier-grade Optical Line Terminal (OLT) platform. It offers EPON, 10G EPON, GPON, XGS-PON and leased line access, as well as multi-service aggregation capabilities. The ISCOM6860 is perfect for POL, FTTx, HFC bidirectional transformation, mobile backhaul, IP leased line interconnections, and more applications. • Support Layer 2 and Layer 3 wire-speed forwarding • Support up to 112 GPON/XGS-PON/EPON interfaces for downlink • Support up to 56 10GEPON interfaces for downlink • Support broadband, voice, IPTV, etc. access services to meet the varying needs of carriers, broadcast, radio, television network, and customer premise networks • Support 1:1 protection of SMCs, 1+1 redundancy of power supplies, and hot pluggable of all cards • Carrier-grade PON protection of type B/C/D • Raisecom private Ethernet ring topology with switching time of 50ms • VLAN, including selective QinQ, VLAN mapping and aggregation • Complete QoS, including dynamic assignment of bandwidth, priority control, multiple traffic classification modes, multiple queue scheduling modes, etc. to meet different QoS requirements for VoIP, ideo, and Internet access services • Complete ACL, including L2, L3, L4, and customized ACLs • MSTP, link aggregation, DHCP, interface isolation, etc • Layer 2 multicast, IGMP Snooping, Proxy, MVR, and controllable multicast • IPv4/v6 unicast routing, RIP, OSPF, ISIS, BGP (ISCOM6800-SMCC only) • With a low power consumption design for all cards, overall power consumption is below 1000W • An intelligent fan with automatic speed adjustment according to chassis temperature prolongs life of fan, reduces noise, and saves energy
