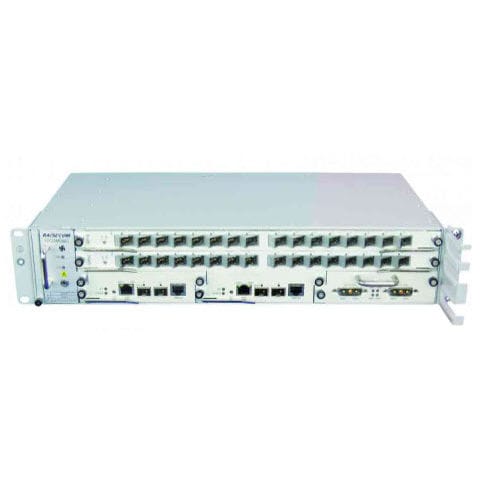

Rack-mount optical line terminal ISCOM6820-GP

PON

ISCOM6820-GP is a 2U small density OLT that complies with the GPON’s ITU-T G.984 standard. The device can support up to 32 GPON, 10 GE and up to 4 x 10G ports. The ISCOM6820-GP can aggregate a maximum of 4096 ONUs/ONTs in a typical splitting ratio of 1:128. The complete modular design of the ISCOM6820-GP enables excessive flexibility in deploying, maintaining and expanding services at reduced CAPEX and TCO. Designed for large enterprises, SME and residential fiber access, the ISCOM6608-GP offers a broad range of features delivering triple-play services, simplifying management, and providing high network reliability. The security is assured by implementations of RADIUS and/or TACACS+, while maximum network uptime is guaranteed by a ring protection mechanism, real-time monitoring and hot-swappable redundant power supplies. • Available with up to 32 x GPON ports • Up to 1:128 split ratio, 20km transmission distance and 4096 ONUs per full-load 2U chassis • An upstream wavelength of 1310nm and a downstream wavelength of 1490nm • VLAN, QinQ, QoS, DBA • Link diagnostic, port backup/isolation/protection/monitoring, bi-directional FEC • ARP, DHCP relay, DHCP v4/v6, IGMP snooping v1/v2, IPv4, IPv6 • Support complete ACL, including L2, L3, L4, customized ACLs and port-based mirroring • Anti-DDoS, RADIUS, TACACS+, Storm control • Service classification per port/VLAN/CoS (DSCP) • SP, WRR, DRR and SP+WRR scheduling modes • SFP digital diagnostic (DDM), FAN, CPU, voltage and temperature monitoring • ITU-T G.984 (GPON) • CE and RoHS compliant, RMON I and II standards • CLI, Telnet, SSHv2 and SNMP (NView compatible)
