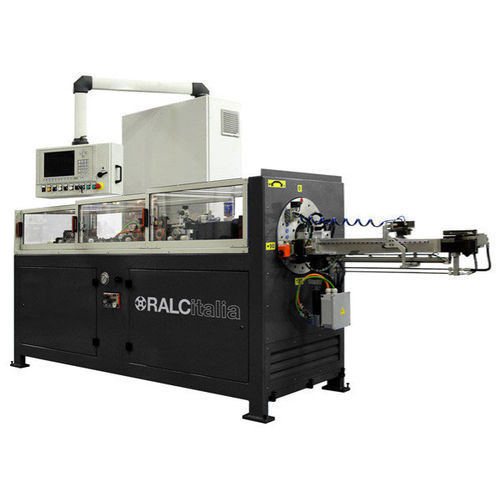

Hydraulic bending machine PLANET 18

tubehorizontalautomatic

Automatic bending machine designed for the production of copper and aluminium tubes with curves on different planes. The Planet 18 bending pipe, given the innovative system between the arm and the machine, allows the arm itself to rotate indefinitely. Technical data: •Minimum working diameter: ø6 mm •Maximum machinable diameter: ø18 mm •Machinable Material: Copper-aluminium-Inox * * = up to ø10mm eatures: •Curvature on the three dimensions; •"Pre-incision" orbital cutting; •Right curvature (optional left); •Maximum working diameter ø16mm; •Avanzamento tubo con motore brushless Vmax = 470 mm / sec; •Rotazione piano di curvatura con motore brushless Vmax = 222° / sec; •Bending with brushless motor Vmax = 215 °/sec; •Continuous curvature plane rotation (angle = ∞); •Adjustable bending angle 0 ÷ 180 °; •Vise Group and oleodynamic bending Group; •Installed power: 6kw •Equipment Kit dedicated to pipe diameter and bending radius (on request); Optional accessories: •Group of pipe straightening on horizontal axis; •Single coil Unwinder; •Double coil unwinder; •Tapering at 2-3-...-6 steps.
