Manual wrapping machine Geami® MX

kraft paper

Product overview

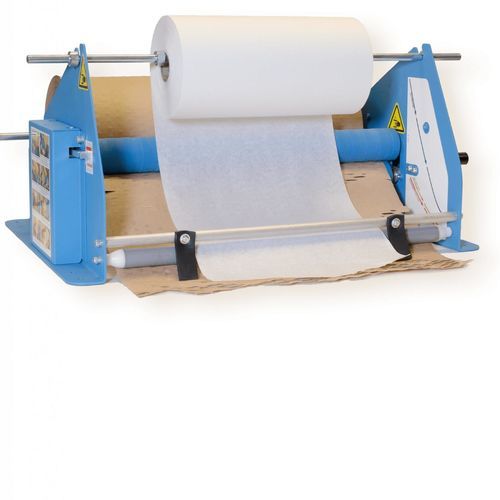

The Geami® MX manual converter expands die-cut kraft paper into a three-dimensional honeycomb wrap. Operated by hand and requiring no electricity, it is designed for low-to-mid-volume packing stations where individual items need protective in-box wrapping.

Key features

• Protection: Die-cut kraft paper combined with a tissue interleaf forms a 3D honeycomb structure that cushions and secures items without adhesive or cutting.
• Productivity: The manual Geami® MX eliminates tape and separate cutting steps, reducing handling time and storage volume through compact pre-pack dimensions.
• Sustainability: Paper-based, biodegradable and recyclable alternative to plastic bubble wrap, facilitating recycling and reducing plastic waste.
• In-box presentation: Provides a neat unpacking experience; tissue interleaf is available in optional colors and custom-printed designs.

Added value

• Packaging engineering: Ranpak can evaluate current packaging, perform drop tests and recommend adjustments for improved protection and cost savings.
• Integrated applications: Custom engineering can design mounts and integrations to place the converter around, above or below a packing area.
• Packaging training: On-site training helps operators reduce material use (up to 20%) without compromising protection.

Technical specifications

• Converter — Cut method: Manual tear
• Converter — Weight: 33 lbs (≈15 kg)
• Converter — Dimensions: 28" x 19" x 13" (≈71 x 48 x 33 cm)
• Operation: Manually operated; requires no electricity
• Material: Die-cut kraft paper with tissue interleaf forming a 3D honeycomb wrap
• No cutting or taping required; angled paper cells interlock for secure wrapping
• Intended use: Manual wrapping system for low to mid-volume packing to provide in-box protection
