inspection camera / SWIR / for UAVs / InGaAs
640 x 512 pix | OWL 640 Raptor Photonics

{{requestButtons}}

Characteristics

  • Function:

    inspection

  • Spectrum:

    SWIR

  • Other characteristics:

    for UAVs, InGaAs

Description

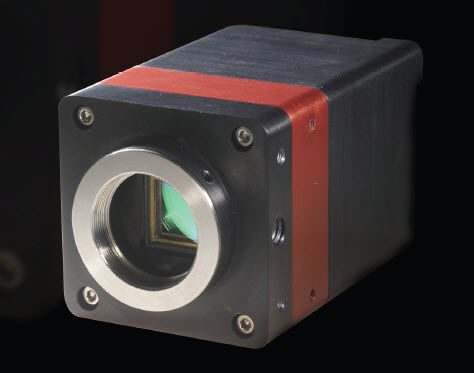

The OWL SW1.7 CL-640 is a compact, low power (<5W), high-sensitivity digital VIS-SWIR camera that was developed by Raptor Photonics. The product achieves high-sensitivity imaging that range from to 0.4µm to 1.7µm with a 640 x 512 InGaAs sensor from SCD. It comes with a new feature called the On-board Automated Gain Control (AGC) which will result in clear videos in any light condition.

The product also has an on-board intelligent 3 point NUC and it has no fan enabling integration into UAV, handheld or any Electro-Optic system. A range of applications such as 860, 1064 and 1550nm laser line detection, active imaging, airborne payload, hand held goggles, imaging through fog, range finding, semiconductor inspection, solarCell inspection, telecommunications and thermography, are compatible with the OWL SW1.7 CL-640.
