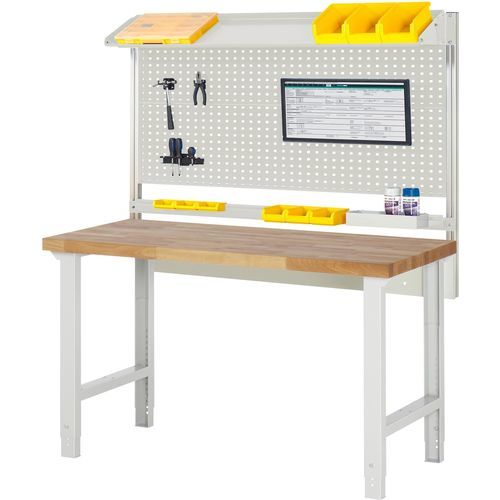

Woodworking assembly bench 03-7000-1-157B4H-KS02.12

adjustable

Description

• Beech solid worktop, thickness 40 mm.
• Beech lamellae finger-joint glued. Front edge with radius, other edges chamfered. Surface protection with eco-friendly lacquer oil. Classic solid worktop: load-bearing, compression-resistant, durable, natural, wear-resistant, reusable. 100% in-house production with PEFC-certified raw material from sustainable regional forestry.
• System base: B1500 x D650 x H750–1100 mm.
• 4-leg frame with two pairs of frame feet in C-profile steel (70 x 50 x 2 mm) including depth braces (top and bottom). Frame feet have wide top support surface (120 mm) and integrated height adjustment at the bottom via C-profile steel with hole grid (25 mm) and option for floor anchoring via drilled foot plates.

Equipment

• 1 x fastening kit (cross member) with 2 system supports (provides system width 1 x 1500 mm).
• 2 x perforated panel B1415 x H450 mm.
• 4-sided system hole pattern (10 x 10 mm holes, 38 mm pitch center-to-center) for mounting perforated panel accessories.
• 1 x tilting metal shelf B1415 x D300 mm; all-around upstands.
• 1 x support rail B1415 mm for storage bins and/or power strip mounting.
• 1 x flat-screen bracket with mounting adapter for perforated panel (VESA MIS-D 75/100).
• Installation height of add-on elements adjustable within the system supports.

Technical data (table)
Width: 1500 mm
Permissible static surface load: 750 kg
Depth: 700 mm
Height from: 790 mm
Height to: 1140 mm
Top type: beech solid worktop
Top thickness: 40 mm

Characteristics / Technical specifications

• Brand: RAU
• Model: Werkbank Modell 7000
• Article number: 03-7000-1-157B4H-KS02.12
• EAN: 4040376430588
• Width: 1500 mm
• Depth: 700 mm
• Height: 790–1140 mm (adjustable)
• Top type: beech solid worktop
• Top thickness: 40 mm
• Permissible static surface load: 750 kg
• System base: B1500 x D650 x H750–1100 mm
• Delivery time: 5 working days
