Aluminum construction profile EE-BW-KS-01-0750.12

squaremountingextruded

Overview

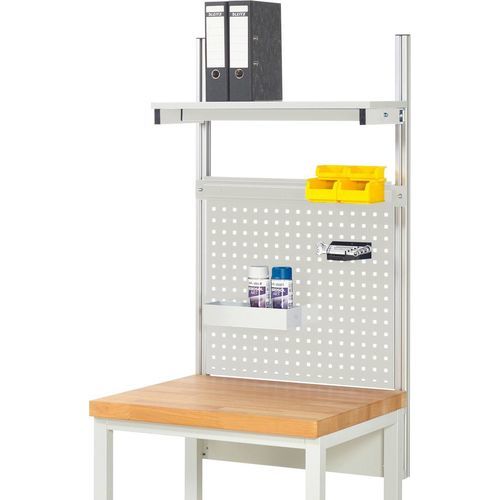

• The mounting set (cross beam) is attached at the rear under the worktop to the system underframe. The 2 system supports (aluminium profile 40 x 40 mm) are fastened to the mounting set with T‑slot nuts (height adjustable) and run behind the worktop so the full worktop depth remains free (no fixing on the top surface).
• The 2 system supports are fixed at the outer left and right positions to create one system field with a system width of 750 mm. Usable height: 1130 mm (measured from top surface of the worktop).
• Suitable for: Jerry and Tom worktables, 900 series work tables, 8000 series workbenches, 7000 series workbenches, mobile benches 8000 series, chassis benches 8000 series, drawer cabinets 7000 series, assembly trolleys 7000 series, electrically height-adjustable workstations adlatus 300 and 600 series.
• Mounting: to system underframe.
• Accepts: add-on elements (system accessories).

Equipment

• 1 x mounting set (cross beam) with 2 system supports (provides system width 1 x 750 mm).
• 1 x perforated plate B665 x H650 mm.
• 4-square perforation pattern (10 x 10 mm holes, 38 mm center-to-center) to accept perforated-plate accessories.
• 1 x shelf board B750 x T300 mm; melamine resin coated panel.
• 1 x holding rail B665 mm for storage bins (open hanging edge at rear of bins required) and/or power rail.
• Installation height of add-on elements inside the system supports is adjustable.

Technical data
Width: 750 mm
Static surface load: 100 kg
Height (usable height from top surface of worktop): 1130 mm
Depth: 350 mm

Characteristics / Specifications

• EAN: 4040376478320
• Article number: EE-BW-KS-01-0750.12
• Denomination / Model: Komplettset 01
• Brand: RAU
• System width (standard configuration): 750 mm
• Usable height: 1130 mm (from top surface of worktop)
• Depth: 350 mm
• Surface load / Static load: 100 kg
• System support material: aluminium profile 40 x 40 mm with profile groove on all 4 sides
• Perforated plate size: B665 x H650 mm with 4-square perforation (10 x 10 mm, 38 mm center distance)
• Included shelf: shelf board B750 x T300 mm (melamine resin coated)
• Holder for storage bins / power rail via holding rail B665 mm
