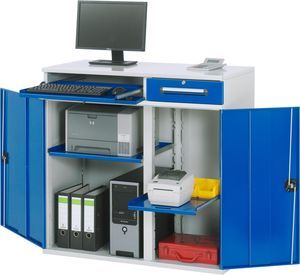

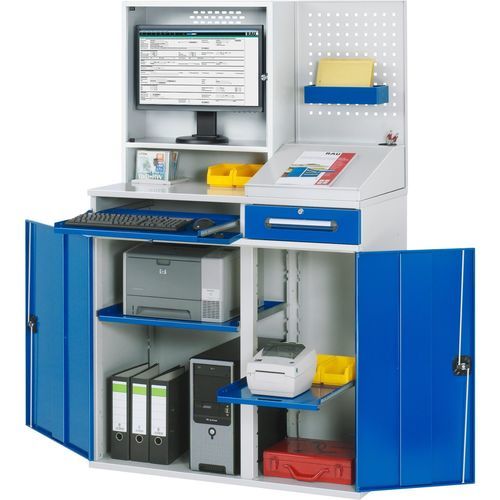

Workshop workstation 07-1100T-M99-MG2.11

computerheight-adjustablewith partition

Description

• Monitor housing (B650 x D250 x H710 mm) with lockable monitor compartment (internal B635 x D230 x H530 mm, integrated ventilation grid), suitable for screens up to 26 in. Below the monitor compartment there is an open shelf (shelf height 140 mm).
• Perforated back panel beside the monitor housing with square hole pattern (10x10 mm, center-to-center 38 mm) for mounting accessories; in front a writing top with folding lid (front with stop strip) and pen cup. Support height 400 mm.
• Base cabinet divided into separately usable keyboard, small and wing-door compartments. Cable passages at the rear of the cabinet, in the top and inside the unit.

Equipment

• Keyboard compartment left (height 120 mm) with front flap (lockable) and keyboard pull-out. Keyboard pull-out B570 x D450 mm for keyboard and mouse (80% extension, load capacity 20 kg, detent).
• Small compartment right (height 120 mm) with lockable drawer. Drawer B370 x D400 x H120 mm (100% extension, load capacity 35 kg, lockable), including label strip.
• Wing-door compartment (height 850 mm) with double wing door (opening approx. 100°, lockable), center support dividing installation width into 1xB650 mm (left) and 1xB450 mm (right) with the following internal layout (shelf height adjustable):
• left: 1 x sliding shelf B570 x D450 mm (80% extension, load capacity 20 kg, detent).
• right: 1 x sliding shelf B370 x D450 mm (80% extension, load capacity 20 kg, detent).

Technical data
Extension type: full extension 100%
Width: 1100 mm
Static load capacity: 200 kg
Height: 1770 mm
Number of drawers: 1
Depth: 520 mm

Specifications

• Total width: 1100 mm
• Total height: 1770 mm
• Depth: 520 mm
• Static load (stationary): 200 kg
• Extension type: full extension 100%
• Number of drawers: 1
• Keyboard pull-out B570 x D450 mm (80% extension, load 20 kg)
• Drawer B370 x D400 x H120 mm (100% extension, load 35 kg, lockable)
• Monitor compartment internal B635 x D230 x H530 mm, suitable for screens up to 26 in
