Beech workbench 03-7501A1-157B4SL.11-Sch

with drawerdoorwith cabinet

Description

• Beech solid worktop, thickness 40 mm.
• Beech slats with finger-joint gluing. Front edge radius, other edges chamfered. Surface protection by eco-friendly lacquered oil. 100% in-house production, PEFC-certified raw material from sustainable regional forestry.
• System underframe B1500 x D650 x H800 mm.
• Frame foot pair in C-profile steel (70 x 50 x 2 mm) including depth bracing (top and bottom). Frame feet with wide top support (120 mm) and perforated base plates for floor anchoring. Power cabinet made of quality sheet steel.
• Color: RAL7035 (light grey) / RAL5010 (gentian blue).
• Condition notes: top slightly soiled; small paint damage on the cabinet body.

Equipment

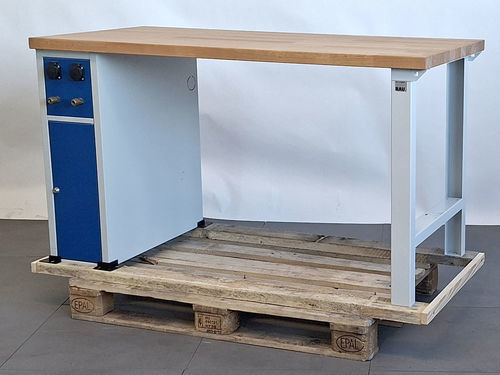

• 1 power cabinet on the left, B260 x D650 x H800 mm with the following layout:
• Top: energy panel (B200 x H210 mm) with 2 x Schuko sockets with flip cover 230 V, 16 A and 2 x quick couplings for compressed air 1/4" (female thread).
• Bottom: hinged-door compartment (B200 x D625 x H520 mm), lockable.

Technical data
Drawer type: partial extension 90%
Width: 1500 mm
Permissible static load: 1000 kg
Height: 840 mm
Depth: 700 mm
Top type: beech solid worktop
Top thickness: 40 mm

Specifications

• Series: Series 7000
• Article number: 03-7501A1-157B4SL.11-Sch
• Dimensions (system underframe / recommended): B1500 x D650 x H800 mm
• Worktop material: beech solid, oiled
• Top thickness: 40 mm
• Frame color: RAL7035 light grey / RAL5010 gentian blue
• Permissible static load: 1000 kg
• Includes left power cabinet with sockets and compressed air connections
