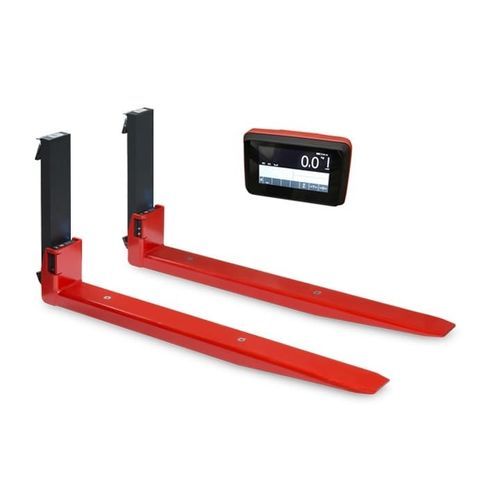

Scale pallet fork iForks-52

for forklift trucksbatterymanual

The RAVAS iForks-52 is the most advanced wireless weighing solution for forklifts, designed for maximum precision and extensive functionality. With even higher weighing accuracy and smart connectivity options, such as direct data integration with WMS or ERP systems, the iForks-52 makes working more efficiently easier than ever. Thanks to its robust construction and long battery life, this scale fork is ideal for intensive logistics and industrial applications. Discover the RAVAS iForks-52 With intuitive touchscreen indicator Mast tilt in display The RAVAS iForks-52 offers a number of clever extras, such as a display of battery status and mast tilt in the operator display. This makes it easy to move the mast into a vertical position for the most accurate weighing. Piece counting The customizable touchscreen display is very intuitive. The operator can enlarge the field displaying the weight on the forks or rearrange the soft keys in the display to their preference. The 5200 display also offers many additional features. Specs System tolerance 0.1% of the load lifted Protection class IP65 / NEMA 4 Functionality Automatic and manual zero correction, gross/net weighing, ID-code entry for max. 4 codes with 10 preset codes (each max. 14 characters), 10 totalizing registers, integrated level correction in the forks, counting functionality, tip and side loading error messages with logging, overload protection 200% on mechanical construction.
