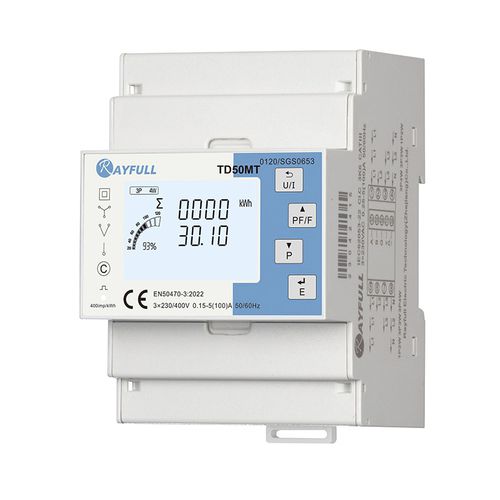

TD50MT series are three phase multifunctional energy meter to measure and analyze the most important electrical parameters, including voltage, current, four-quadrant power parameters, power factor, total harmonic, and etc. And it can also read a variety of energy parameters, involving bidirectional active and reactive energy, four-quadrant energy, monthly and daily energy consumption statistics, and so on. The series realizes the measurement and analysis of power parameters in various power grid environments, such as 1P2W, 3P3W and 3P4W.
The TD50MT series have RS485 communication interface with highest baudrate 38400bps, supporting Modbus or DLT645 protocol for remote reading.
At the same time, the large-screen LCD and touch buttons help users to view and set various measurement parameters on site.
Password protection function is added to greatly improve the data security.
Measurements: V,A,W,Var,kWh,kVarh,PF, THD...
Multi-tariffs: 4 tariffs, 8 time segments
Bidirectional Energy and Power Measurement
Pulse Output
Communication: RS485 Modbus RTU/DLT645-2007
Networks:1P2W/2P3W/3P3W/3P4W
CE/ROHS/MID/IEC Approved
Communication Specifications
• Interface and Protocol : 2-Wire RS485; Modbus RTU(Default), DL/T645-2007(Optional)
• Baudrate : 1200, 2400, 4800, 9600(Default), 19200, 38400 bps
• Parity : None(Default), Even, Odd
• Stop Bit : 1(Default), 2
• Response Time : <100ms
• Bus Type : Semi-duplex
• Distance : Max. 1000m
• Bus Load : Max. 64pcs
Environment Specifications
• Operation Temperature : -25 ~ +55℃
• Storage Temperature : -40 ~ +80℃
• Humidity : <90%, no condensing
• Pollution Degree : 2
• Altitude : <2000m
