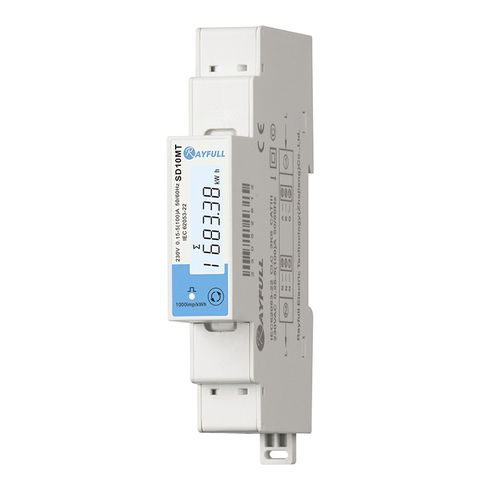

Multi-function electric energy meter SD10MT

single-phaseDIN railRS-485

SD10MT series are single phase multifunctional energy meter to measure and analyze the most important electrical parameters, including voltage, current, power factor, and etc. And it can also read a variety of energy parameters, involving bidirectional active and reactive energy, monthly and daily energy consumption statistics, and so on. The SD10MT series have RS485 communication interface with highest baudrate 19200bps, supporting Modbus or DLT645 protocol for remote reading. At the same time, the touch buttons help users to view and set various measurement parameters on site. Password protection function is added to greatly improve the data security. Measurements: V,A,W,Var,kWh,kVarh,PF, ... Multi-tariffs: 4 tariffs, 8 time segments Bidirectional Energy and Power Measurement Pulse Output Communication: RS485 Modbus RTU/DLT645-2007 Network: 1P2W CE/ROHS Approved Communication Specifications • Interface and Protocol : 2-Wire RS485; Modbus RTU(Default), DL/T645-2007(Optional) • Baudrate : 1200, 2400, 4800, 9600(Default), 19200bps • Parity : None(Default), Even, Odd • Stop Bit : 1(Default), 2 • Response Time : <100ms • Bus Type : Semi-duplex • Distance : Max. 1000m • Bus Load : Max. 64pcs Environment Specifications • Operation Temperature : -25 ~ +55℃ • Storage Temperature : -40 ~ +80℃ • Humidity : <90%, no condensing • Pollution Degree : 2 • Altitude : <2000m • Vibration Frequency : Range: 10~150Hz, Refer to IEC 60068-2-6
