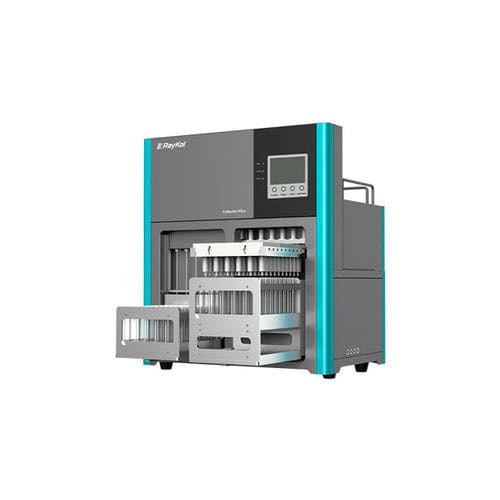

Automated solid phase extraction workstation Fotector

Product overview
RayKol Fotector Series automated solid phase extraction (SPE) systems deliver high‑throughput, multi‑channel SPE automation for analytical, environmental and food testing laboratories. Designed to reduce manual handling, they combine precise flow control, parallel processing and modular configuration in a compact footprint suitable for installation in a fume hood to limit operator exposure.

Key features

• Fully automated SPE workflows with minimal operator intervention
• Accurate flow‑rate control (0.1–100 mL/min) for reproducible parallel extractions
• Multi‑channel options (2–8 channels) for consistent batch processing
• Synchronous rack positioning and rapid solvent switching for efficient throughput
• Modular support for cartridges (1–20 mL) and multiple vial formats
• Windows PC control software with Wi‑Fi and remote real‑time monitoring
• Requires nitrogen gas supply and fume hood/ventilation

Specifications
Models: Fotector 02HT / Fotector Plus / Fotector 08HT / FS 360
Extraction channels: 2 / 6 / 8 / 6 (model dependent)
Sample capacity: 20, 12 / 60, 36 / 80, 48 / 36 (model dependent)
SPE cartridge size: 1 mL to 20 mL (model dependent)
Sample/collection vials: compatible with 15 mL, 20 mL, 60 mL, 80 mL
Solvent capacity: 8 (model dependent)
Flow rate: 0.1 to 100 mL/min
Gas supply and connection: Nitrogen required; max input 100 psi / 6.9 bar; output 0–20 psi / 1.4 bar
Fume hood / ventilation: Required
Control software: Windows PC; Wi‑Fi connection
Dimensions (examples): 40×38×58 cm / 62×38×63 cm / 77×45×64 cm
Weight (examples): 30 kg / 68 kg / 72 kg
Power supply: 200–240 V, 50/60 Hz
Operating temperature/humidity: 10–40 °C, 20–80% RH; Storage: 0–40 °C, 20–85% RH

Technical specifications

• Series name: Fotector Series (Fotector 02HT, Fotector Plus, Fotector 08HT, FS 360)
• Extraction channels: 2–8 parallel channels depending on model
• Throughput: up to 80 samples per run depending on model
• Cartridge compatibility: 1–20 mL SPE cartridges
• Flow control range: 0.1–100 mL/min for precise, reproducible extractions
• Gas: Nitrogen supply required; gas heating and integrated evaporation optional on some models
• Safety: Designed for use under fume hood/ventilation to minimize solvent exposure
• Automation: Modular architecture for application‑specific configurations and remote monitoring
