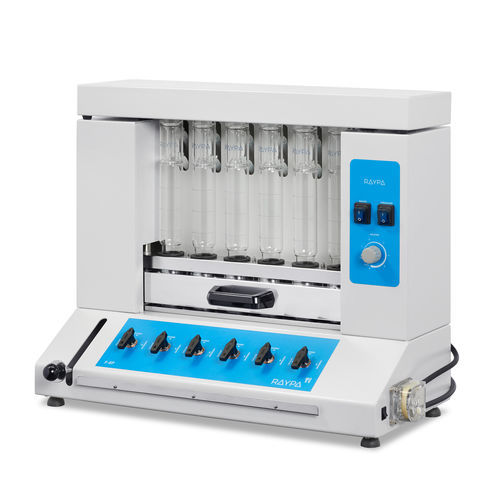

Manual raw fiber extractor F-6P

F-6P Manual fibre determination system with peristaltic pump Intended use: Determination of raw/crude fiber contents per Weende or Wijstrom, acid detergent fibre (ADF) and neutral detergent fibre (NDF) per Van Soest and, acid detergent lignin (ADL) Features: • Extraction and filtration without sample transfer (it avoids lose of sample) • High reproducibility of conditions and results. • Up to 36 analysis/day (Weende) • Versatile use: samples can be dried/weighted at every phase if needed. • System for six simultaneous samples. • All electric and mechanic elements are conveniently protected • Furniture in stainless steel epoxy painted. • Additionally, it can be connected to the RAYPA cold extractor (EF-6) to guarantee the optimum working conditions of the system. Pressure contribution: F-6P has a peristaltic pump that provides the necessary conditions for filtering. Technical data: • Range of measurement: 0,1-100% • Reproducibility: ±1% for a fibre contents level of 1-30% Supplied with: • 6 glass crucibles porosity P-2 • Crucibles rack • Heater lid • Handling support • Crucible vessel tong
