Area scan camera SI4fire detectioncommunicationmonitoring
Add to favorites
Compare this product
Characteristics
- Technology
- area scan
- Applications
- fire detection, communication
- Function
- detection, monitoring, security, thermal imaging, thermal
- Spectrum
- infrared, IR, visible
- Sensor
- FPA, VOx
- Interface
- ONVIF
- Other characteristics
- zoom, panoramic, uncooled
Description
Product overview
Key features
Applications
Technical specifications

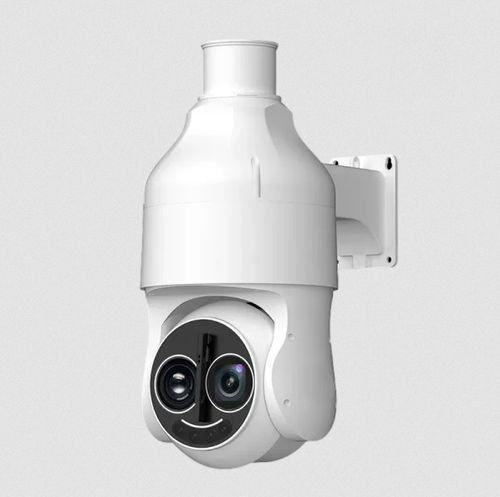

- The SI4 Series Panoramic Search and Tracking System combines a 360° infrared panoramic sensor and a dual‑spectrum PTZ in a single housing to deliver continuous detection and rapid target confirmation. The panoramic thermal layer provides all‑weather, day/night wide‑area alerting; the lower PTZ (thermal + 4MP visible) performs zoomed identification and continuous tracking.
- By fusing dual‑spectrum data and linking panoramic detection with PTZ confirmation, the system supports end‑to‑end monitoring workflows from global alerting to precise identification for perimeter and infrastructure security.
Key features
- Infrared panoramic sensor: 12μm uncooled VOx FPA enabling long‑range thermal imaging with high detection sensitivity.
- Dual‑spectrum imaging: thermal module (640×512, 12μm) combined with 1/1.8" 4MP visible camera for cross‑verification.
- 360° continuous panoramic monitoring: full‑coverage situational awareness with no blind spots.
- Integrated search & tracking: panoramic detection triggers PTZ telephoto zoom for rapid identification and continuous tracking.
- Intelligent video analysis (VCA): supports tripwire and region intrusion, human/vehicle classification, intelligent smoke and fire detection.
- Platform integration: ONVIF and standard protocols supported; SDK for secondary development; compatible with NVR and VMS platforms.
Applications
- Perimeter monitoring for oilfields, depots and critical infrastructure
- Solar and wind farm security and asset protection
- Airports, substations and high‑voltage facility perimeter surveillance
- Large‑area, all‑weather security where continuous detection and identification are required
Technical specifications
- Panoramic — Sensor Type: VOx uncooled FPA; Resolution: 13440×512; Pixel pitch: 12μm; Focal length: 25 mm; FOV: 360° × 14°; FPS: 0.4 Hz.
- Thermal Module — Detector Type: VOx uncooled FPA; Resolution: 640×512; Pixel pitch: 12μm; Focal length: 50 mm; Focus: Auto / Semi‑auto / Manual.
- Optical Module — Sensor: 1/1.8" 4MP CMOS; Resolution: 2688×1520; Focal length: 6.5–260 mm; Focus: Auto / Semi‑auto / Manual; FOV: 57.6°×33.5° ~ 2.9°×1.6°; IR distance: Max. 200 m.
- PTZ — Pan: 360° continuous, 0.1°–200°/s; Tilt: -90° ~ 27°, 0.1°–120°/s, auto‑flip supported; Presets: 1024; Scan modes: Preset / Tour / Pattern / Linear / Area Scan.
- Smart functions — Intelligent detection: tripwire, region intrusion, human/vehicle recognition; panoramic linkage tracking: manual and event‑driven PTZ linkage; malfunction detection and alarm linkage (recording/snapshot/alarm output/email/PTZ linkage/audio‑visual alert).
- System interface — Power: DC 24V ±15%; Communication: 1×RJ45 10M/100M; Audio: 1‑in, 1‑out; Alarm I/O: 1‑in, 1‑out; Storage: microSD up to 512 GB; Reset: supported; Comm port: 1×RS485.
- General — Operating temp: -50°C ~ +50°C; Humidity: <95% RH; Ingress protection: IP66; Power consumption: max. 75 W; Dimensions (mm): 539.3 × 249.4 × 415.2; Weight: <20 kg.
- Detection range — Lens options: 25 mm, 50 mm; Person (1.8 × 0.5 m): 0.26 km (25 mm), 0.5 km (50 mm); Vehicle (1.4 × 4.0 m): 0.8 km (25 mm), 1.6 km (50 mm).
