Automatic positioning system PM6

camera-basedwith controller

Product Overview

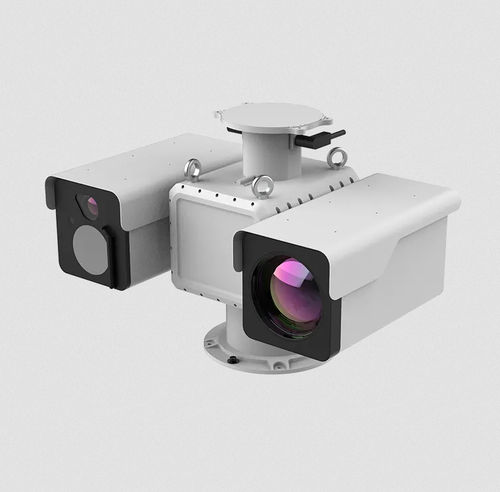

The PM6 Series Multi-spectrum Positioning System features an integrated coaxial design with upper and lower payloads delivering multi-spectral imaging (thermal and visible). It provides a mounting base for additional detection modules and simplifies coordinate conversion during re-detection, improving detection accuracy and operational efficiency. The architecture supports progression from multi-dimensional coordination toward full data fusion for robust surveillance in demanding security scenarios.

Key Features

• Infrared detector options: uncooled VOx and high-performance MWIR cooled (T2SL) detectors with advanced IR image algorithms for clear long-distance imaging.
• Dual‑spectrum imaging: thermal channel up to 640×512; visible channel up to 4 MP (2688×1520).
• Long-range optics: uncooled thermal lens 25–225 mm (continuous zoom) and cooled option 30–660 mm; visible optical module focal length up to 15–775 mm.
• Intelligent Video Analysis (VCA): area intrusion, tripwire, human/vehicle/boat/fire detection, line crossing, entrance/exit events.
• Coaxial architecture: integrated detection platform that simplifies calibration and enhances search/tracking accuracy and efficiency.
• Platform integration: ONVIF and other standard protocols supported; SDK available for secondary development.

Applications

• Coastline and harbor security
• Forest fire monitoring
• Urban high-altitude observation
• Perimeter security for critical infrastructure, oil & gas fields, mines

Technical Specifications

• Thermal Module — Detector Type: uncooled VOx infrared detector or T2SL cooled infrared detector.
• Spectral Range: 8 ~ 14 μm (long‑wave) and 3.4 ~ 5.0 μm (mid‑wave).
• NETD: ≤40 mK @ F1.0 (uncooled), ≤20 mK @ F4.0 (cooled).
• Thermal Resolution: 640 × 512.
• Pixel Pitch: 12 μm or 15 μm.
• Thermal Focal Length (options): 25–225 mm (uncooled) and 30–660 mm (cooled).
• Optical Module (Visible) — Sensor: 1/1.8" 4MP CMOS; Resolution: 2688 × 1520; Focal Length: 15–775 mm; Focus Mode: Auto / Manual / One‑off automatic.
• PTZ — Pan: 360° continuous, speed 0.1°–100°/s; Tilt: -90° to 90°, speed 0.01°–100°/s.
• Top Load Capacity: 35 kg.
• Gyro Stabilization: supports image stabilization.
• Scan Modes: Preset / Tour / Pattern / Linear scan.
• Smart Function — Intelligent Detection: tripwire, line crossing, regional intrusion and other IVA functions.
• Coaxial Auto‑framing: supported.
• Smart Recording: alarm‑triggered recording and network‑loss‑triggered recording with auto‑resume.
• Malfunction Detection: alarms for network disconnection, IP conflict, SD card error, illegal access, burn alert, abnormal detection.
• Alarm Linkage: video recording / snapshot / alarm output / email / PTZ linkage / audible & visual alarm.
• System Interface — Power Supply: DC 48V ±15%.
• Communication: 1 × RJ45 10M/100M self‑adaptive Ethernet port; 1‑channel RS485.
• Storage Interface: Micro SD card (up to 1 TB).
• General — Operating Conditions: -40°C to +70°C; humidity < 90% RH.
• Ingress Protection & Surge: IP66; TVS 6000V; lightning, surge and spike protection.
• Power Consumption: Max. 500 W.
• Dimensions (mm): 826 × 571 × 606.
• Weight: 85 kg.
• Distance Performance (examples) — Human (1.8 × 0.5 m): 2,300 m / 5,500 m; Vehicle (1.4 × 4.0 m): 5,300 m / 12,000 m; Vessel (10 × 5 m): 9,400 m / 22,000 m; Low‑altitude target (0.35 × 0.35 m): 2,500 m / 5,000 m.
