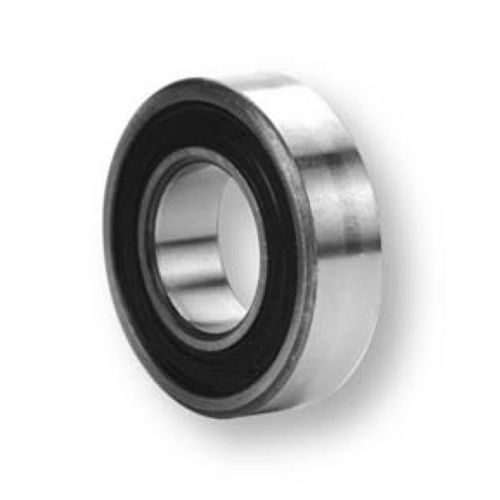

Ball bearing 1600 series
radialsteelprecision

ball bearing
ball bearing
ball bearing
Add to favorites
Compare this product


Characteristics

Rolling element
ball
Configuration
radial
Material
steel
Other characteristics
precision, sealed
Inside diameter

Max.: 1.25 in

Min.: 0.25 in

Outside diameter

Max.: 2.56 in

Min.: 0.69 in

Width

Max.: 0.688 in

Min.: 0.25 in

Description

Precision ground 1600 Series™ bearings are specially designed to provide a line of low cost yet high quality bearings for adaptation to a majority of precision bearing applications. They are made in easy to use inch dimensions and are recommended for medium loads and for maximum speeds in the range of 5000 rpm. The 1600 Series™ bearings are precision ground on all surfaces with exceptional care given to the ball grooves. Careful heat treatment provides a uniform and exact de gree of hard ness for maximum life. A ball retainer, or separator, is used to increase the range of allowable speeds by reducing ball-to-ball contact friction. The 1600 Series™ radial bearings are available open, single or doubled shielded, or single or double sealed. Double sealed and double shielded bearings are supplied grease packed as standard. Open and single closure bearings can be supplied greased on request.
