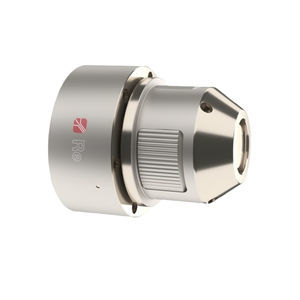

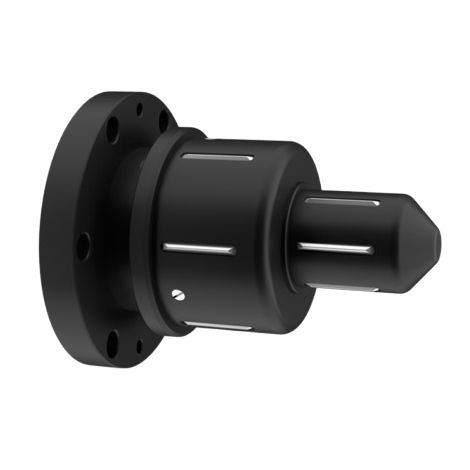

Mechanical chuck TM series

The TM axial-thrust core chuck is designed to ensure secure and efficient gripping of reels made from any material, whether on new unwinders or existing roll stands requiring a retrofit. Equipped with a spring system, the core chuck utilizes axial thrust during core insertion to expand a series of keys, providing stable and secure roll locking. TM core chucks offer an excellent cost-performance ratio for roll locking, ensuring reliable operation and long service life even in demanding work environments. Available in single-diameter or double-diameter versions, the TM axial-thrust core chuck is tailored to meet specific processing needs. They are also available with flange version for unwinders already equipped with an expulsion system, or with a through-hole for the photoelectric sensor, useful for aligning the unwinder arms. TM axial-thrust core chuck can be manufactured in diameters ranging from 3” to 12”, handling loads up to 150.000 N and torques up to 18.000 Nm. To fit any new or existing unwinder, the flange mounting and centering can be customized, offering a versatile solution perfectly adaptable to any operational requirement. Optimum and constant reel core grip Available diameters from 3" to 12" Suitable for all new or existing roll stand Robustness, flexibility and ease of installation Loads up to 150.000 N and torques up to 18.000 Nm Minimum maintenance
