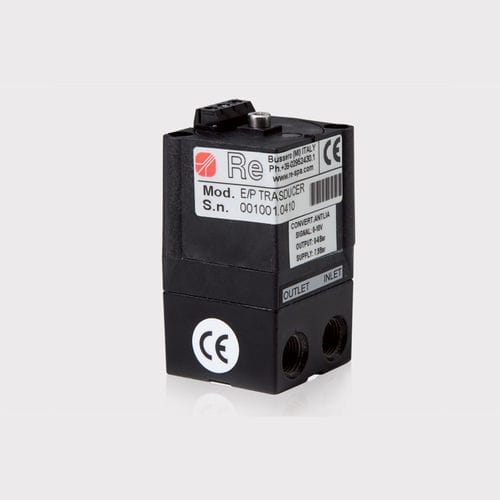

Electro-pneumatic signal converter ANTLIA

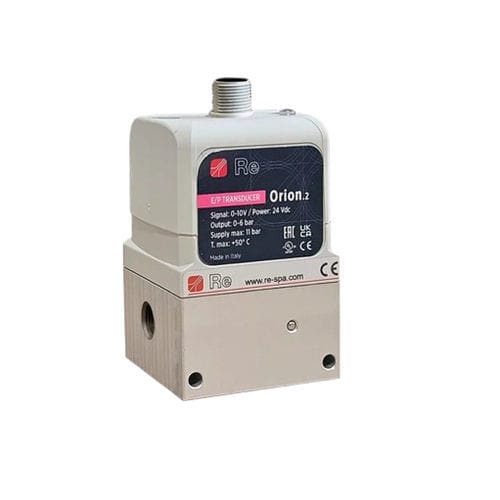

Orion.2 and Antlia XL are electropneumatic transducer, which help the operator to obtain highest tension precision of the web; recommended for the excellent price/performance ratio, they can be used both on open-loop and closed-loop systems together with a pneumatic brake or clutch. Thanks to the compact dimension they can be easily installed near the pneumatic brake or clutch it is connected to, in order to obtain the maximum performance. Orion.2 and Antlia XL are able to proportionally transforms an input electric signal into a pneumatic signal. Orion.2 electropneumatic transducer ensures a max flow capacity of 1.100 Nl/min and a response time of <300ms; Antlia XL, that is supplied complete with a air filter to remove liquid or solid foreign matters, offers a max flow capacity of 1.200Nl/min and a response time of <80ms. Compact size and easy to install Flow capacity up to 1.200 Nl/min Used for closed-loop and open-loop systems Used with pneumatic brake or clutch Response time up to <80ms Good price to quality ratio
