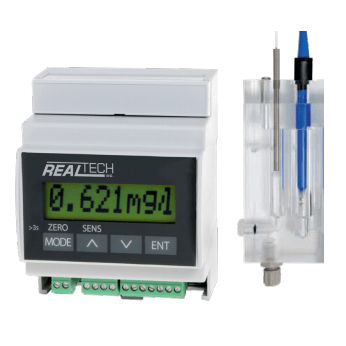

FREE CHLORINE SENSOR
Real Tech’s bypass style Free Chlorine sensor provides rapid real-time measurement of free chlorine, chlorine dioxide and/or dissolved ozone in water or wastewater. Ideal for pressurized applications, the monitoring solution has three measurement ranges.
LIQUID AI COMPATIBLE
Our Liquid Ai data services complement our real-time water quality monitoring systems. Our Remote Monitoring platform is a powerful data management and visualization tool that enables access to data anywhere, anytime.
FEATURES & BENEFITS
Affordable, real-time free chlorine, chlorine dioxide and/or dissolved ozone measurement
Potentiostatic sensor technology
Range for wastewater to high purity applications
Automatic temperature compensation
Low maintenance requirements
Simple to install and operate
No reagents required
CHARACTERISTIC - TECHNICAL DATA
SENSOR -
Parameters - Free chlorine, chlorine dioxide, and/or dissolved ozone
Free Chlorine Range - Selection of three measuring ranges: 0-2 mg/L , 0-20 mg/L or 0-200 mg/L
Resolution - 0.001, 0.01 or 0.1
Units - ppm / mg/L
Sampling Time - 0.5 seconds
Measurement Principle - Potentiostatic measurement technology
Electrodes - 2 platinum rings
Reference - Gel with annular junction
Sensor Lifetime - Approximately 12-18 months. Depends on site and application
Calibration - Manual correction on the selected scale and sensor’s current offset
Cleaning - Pressurized DI water only
Temperature Compensation - Automatic with RTD
Flow - Constant flow required. ~150-500 mL/min
