Electrically isolating mat E4 seriesprotectionribbedrubber
Add to favorites
Compare this product
Characteristics
- Function
- protection, electrically isolating
- Type
- ribbed
- Material
- rubber
- Applications
- indoor
- Color
- gray
- Other characteristics
- roll, REACH compliance
- Length
10 m
(32'09" )- Width
100 cm
(39 in)- Thickness
6.5 mm
(0.256 in)
Description
Overview
Recommended Use
Electrical Performance
Available Configurations
Installation & Maintenance
Characteristics / Technical Specifications
- Class 4 electrical safety mat designed to insulate and protect operators working on or near live installations.
- Durable Class 4 insulating rubber construction.
- Provides electrical protection while remaining easy to handle and maintain.
Recommended Use

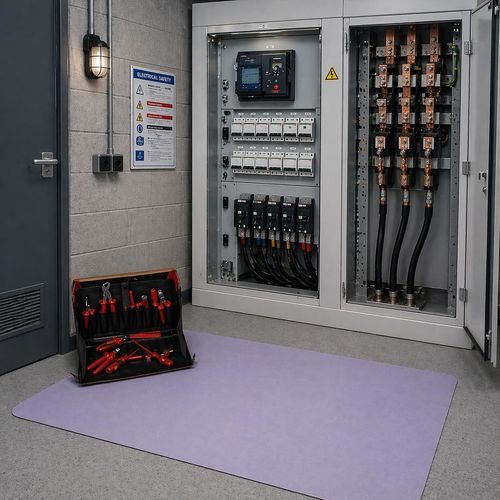

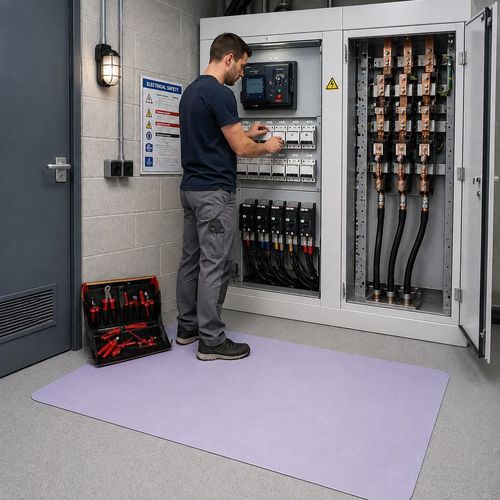

- For use in front of switchboards and electrical panels in dry indoor environments.
- High-voltage switchboards and substations
- Power generation and transmission facilities
- Electrical maintenance in heavy industry
- Critical infrastructure environments
Electrical Performance
- Working Voltage: 36 kV
- Proof Voltage: 40 kV
- Withstand Voltage: 50 kV
Available Configurations
- Roll format: full rolls for long work areas
Installation & Maintenance
- Prepare your surface: Floor must be clean, dry, and free of dust or grease
- Place your mat: Roll out and place in your workzone
- Routine cleaning: Sweep or vacuum to remove dust and debris
- Equipment caution: Use hand-held equipment only
Characteristics / Technical Specifications
- Material: Natural Rubber
- Operating Temperature Range: -30°C to +90°C
- Electrical Certification: IEC 61111:2009 / DIN EN 60243-1
- Recyclable: Yes
- REACH: Yes
- Working Voltage: 36 kV
- Proof Voltage: 40 kV
- Withstand Voltage: 50 kV
