Electrically isolating mat E2R0010GRGR

protectionrubberindoor

Overview
Class 2 electrical safety mat designed to insulate and protect operators working on or near live installations.

• Durable Class 2 insulating rubber construction.
• Provides reliable electrical protection while remaining easy to handle and maintain.

Recommended Use

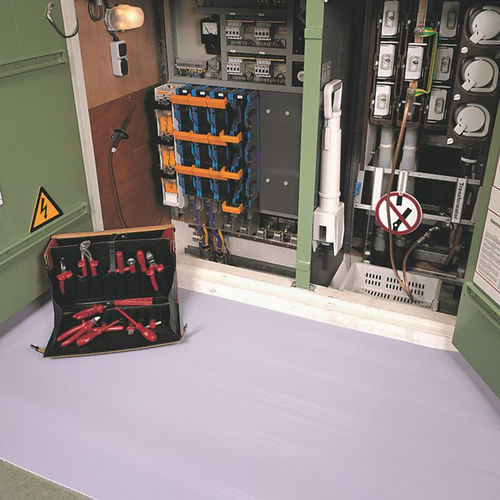

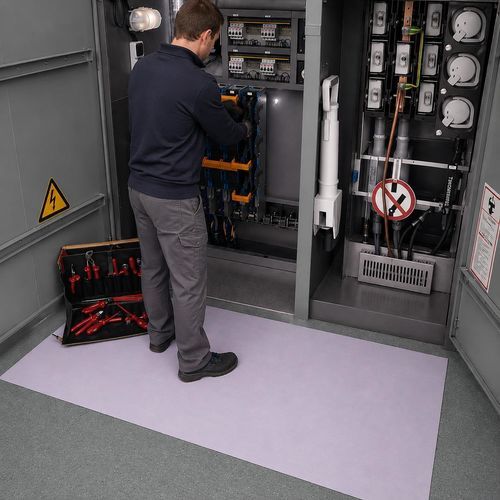

For use in front of switchboards and electrical panels in dry indoor environments.

• Electrical switchboards and control panels
• Power distribution rooms
• Maintenance and service operations
• Industrial electrical installations

Electrical Performance

• Working Voltage: 17 kV
• Proof Voltage: 20 kV
• Withstand Voltage: 30 kV

Available Configurations
Roll format: full rolls for long work areas.

Technical Informations

• Material: Natural Rubber
• Operating Temperature Range: -30°C - +90°C
• Electrical Certification: IEC 61111:2009 / DIN EN 60243-1
• Recyclable: Yes
• REACH: Yes
• Working Voltage: 17 kV
• Proof Voltage: 20 kV
• Withstand Voltage: 30 kV

Datasheets
Datasheets available in multiple languages including English, French, German, Dutch, Italian, Spanish and Portuguese.

Installation & Maintenance

• Prepare your surface: Floor must be clean, dry, and free of dust or grease
• Place your mat: Roll out and place in your workzone
• Routine cleaning: Sweep or vacuum to remove dust and debris
• Equipment caution: Use hand-held equipment only

Features / Technical specifications

• Material: Natural Rubber
• Operating Temperature Range: -30°C - +90°C
• Electrical Certification: IEC 61111:2009 / DIN EN 60243-1
• Recyclable: Yes
• REACH: Yes
• Working Voltage: 17 kV
• Proof Voltage: 20 kV
• Withstand Voltage: 30 kV
• Product type: Class 2 electrical safety mat
• Available configuration: Full rolls for long work areas
