ESD mat W4 series

anti-fatiguefoamroll

Overview

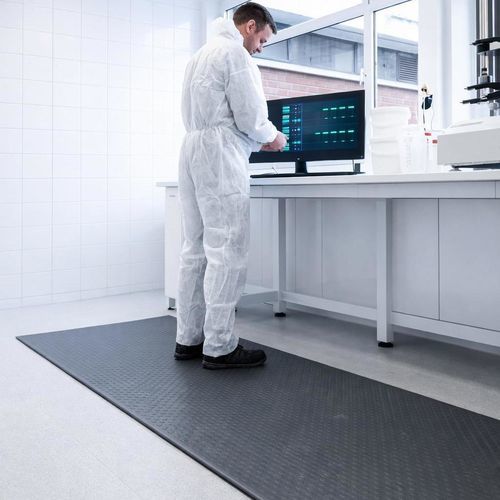

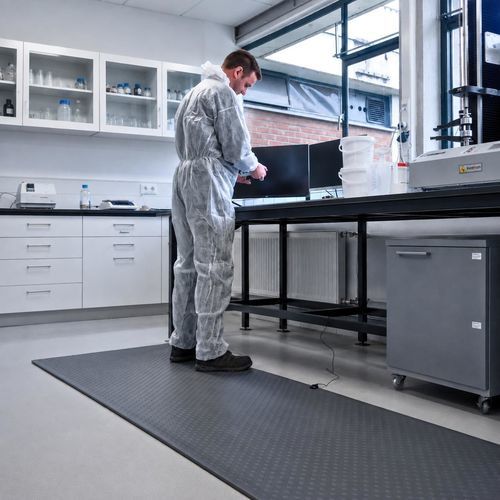

ESD anti-fatigue mat providing ergonomic comfort in areas where sensitive components require ESD protection.

Key features

• 9.5 mm resilient foam provides comfortable cushioning underfoot.
• Suitable for environments where electrostatic discharge (ESD) control is required.
• Cushioning: Medium
• Pressure Distribution: Medium
• Bounce-Back: Medium
• Top Surface Grip: Standard
• Table Grip: Standard

Recommended Use
Engineered to create a comfortable and controlled ESD surface for standing work.

ESD Standard
Manufactured and tested in accordance with EN IEC 61340-5-1 with a resistance range of 10⁶ to 10⁹ ohms.

Available Configurations

• Standard mats: ready-to-use fixed sizes
• Roll format: full rolls for long work areas
• Per meter: cut to the exact length needed
• Complete kits: including mats and essential accessories for a ready-to-use ESD workstation

Origin
100% Made in Belgium

Installation & Maintenance

• Prepare your surface: Floor must be clean, dry, and free of dust or grease
• Place your mat: Roll out and place in your workzone.
• Routine cleaning: Sweep or vacuum to remove dust and debris
• Equipment caution: Use hand-held equipment only

Datasheets
Datasheets available in multiple languages (English, French, German, Dutch, Italian, Spanish, Portuguese).

Technical specifications

• Material: ESD Compliant Foam
• Thickness: 9.5 mm
• Operating Temperature Range: -30°C to 70°C
• ESD Rating: Compliant – 10⁶ to 10⁹ ohms
• Moisture Resistance: Not recommended
• Oil Resistance: Not recommended
• Chemical Resistance: Weak
• Recyclable: Yes – Eligible for The Rebourne® Circularity Program
• REACH: Yes
• Phthalate-Free: Yes
