Anti-static mat W3 series

ESDelectrostatic conductivefoam

Overview
ESD table mat engineered to protect electrostatic-sensitive components on assembly, repair and testing workbenches. The 5.5 mm impact-absorbing foam reduces damage from minor drops and provides a stable working surface.

• 5.5 mm impact-absorbing foam core for shock mitigation.
• Conductive/ESD-safe top surface designed for controlled environments.

Performance
Cushioning: High
Pressure distribution: Medium
Bounce-back: Medium
Top-surface grip: Standard
Floor grip: Standard

Recommended use

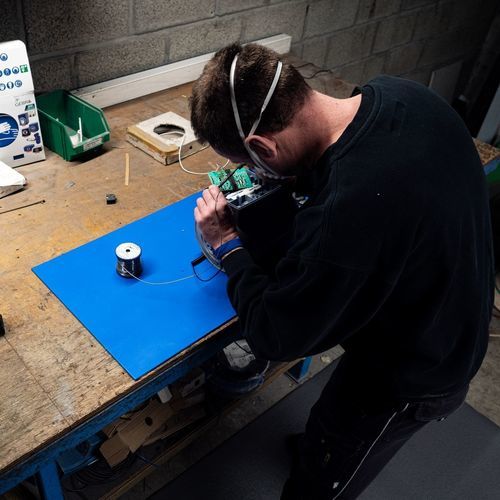

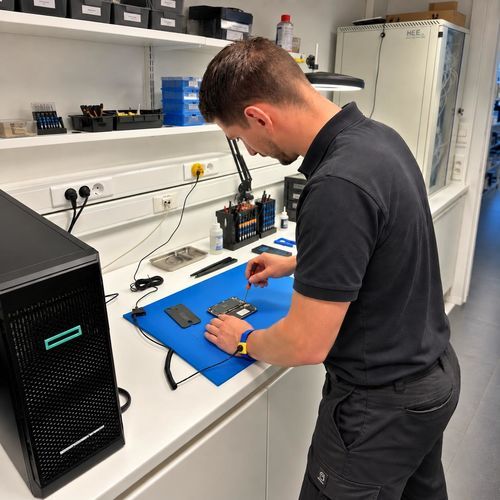

• Electronics assembly and repair benches
• Testing and quality-control stations
• Laboratories and technical workshops
• Production and maintenance workstations
• Training and educational labs

ESD Standard
Manufactured and tested in accordance with EN IEC 61340-5-1. Surface resistance range: 10^6 to 10^9 ohms.

Available configurations

• Standard mats: fixed, ready-to-use sizes
• Roll format: continuous rolls for extended work surfaces
• Per meter: cut-to-length service
• Complete kits: mats with essential accessories for a ready ESD workstation

Installation & Maintenance

• Surface preparation: ensure the workbench is clean, dry and free of dust or grease.
• Placement: unroll or lay the mat, align to the bench and connect any grounding accessories.
• Maintenance: remove dust regularly to maintain ESD performance; inspect for wear and replace as required.

Datasheets
Datasheets available in: English, French, German, Dutch, Italian, Spanish, Portuguese.

Technical specifications

• Material: ESD-compliant foam
• Operating temperature range: -30°C to 70°C
• ESD rating: compliant, 10^6 - 10^9 ohms
• Moisture resistance: not recommended
• Oil resistance: not recommended
• Chemical resistance: weak
• Recyclable: yes — eligible for the REBOURNE® Circularity Program
• REACH: yes
• Phthalate-free: yes
• Thickness: 5.5 mm impact-absorbing foam
