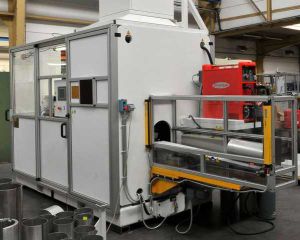

Laser welding machine SEAMUNIT

TIGsubmerged arcMAG

Seamunit is simple to use and ideally integrates in production flows, since the welded product crosses the machine. Seamunit is fully automatic. • Longitudinal welding. • Automatic cycle for positioning the edges to be welded, and for welding. • Shell diameter from 50 mm. • Shell length up to 3 metres (or more on request). • Sheet thickness between 1/10 and 5 mm according to versions. • Productivity between 100 and 200 parts an hour according to models. • Possible shell forms: cylindrical, rectangular, oval, triangular, and any other complex form (to be validated according to the radii to be made). • Welding processes: MIG/MAG (mono and twin), TIG, Plasma, submerged arc, laser and hybrid laser. • In its basic version, Seamunit requires specific tooling per tube size, but with the Flex- option no tooling is required. • In addition to our standard range, we examine every request to adapt our machines to the specifications of our customers. • Version without specific tooling – Flex-Seamunit: the welding cage is digitized and enables very fast production change times, less than a minute. A very wide production size range is possible. • Integration in a rolling station. Automobile: exhaust silencer and catalyser bodies, filtration components, etc. • Motorcycle: Complex form exhaust silencer bodies. • Utility vehicles, trucks and coaches: fuel tanks, exhaust silencer and catalyser bodies, filtration components, compressed air reservoirs, etc. • Piping: fume extraction, water downpipes, industrial ventilation, etc. • Various tubes for all industries. • Water heaters. • Extinguisher bodies. • Pump and compressor bodies. • Compressed air reservoirs.
