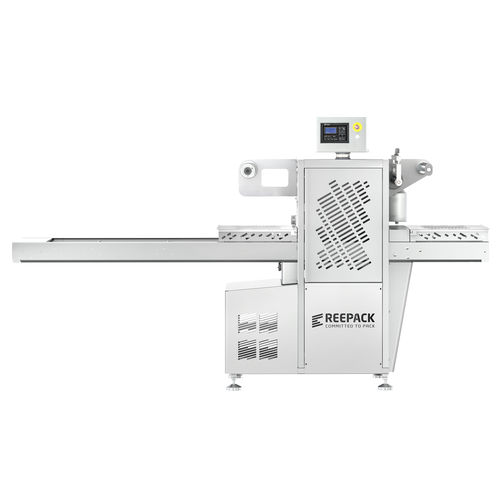

Linear array tray sealer REEBASIC

automaticfor the food industryvacuum

Fully automatic MAP traysealer for every kind of pre-formed trays. The restyling of this machine has been carefully studied to make it even more stable, ergonomic, and easy to use with low maintainance. The NEW ReeBasic Automatic Tray Sealer is the perfect combination between low consumption and a compact footprint. No compressed air required! HYGIENIC DESIGN FOR EASY WASHDOWN - Replacement of all screws with washers with hexagonal head flanged screws. - Hygienic closures for electrical cabinet. - Tray support panels on infeed locked in position without screws. - Motors and gearboxes with a more cleanable design. CHANGES TO DECREASE MAINTENANCE COSTS - Outfeed conveyor with rollers removable without tools. - Film unwinding system adjustable by friction. - New support feet to give greater stability, plus possibility of mounting wheels. Possibility of installing 40 and 60 m3/h pumps with the same housing. Machine height: 1750 mm Machine width: 945 mm Machine length: 3050 mm Infeed conveyor length: 1850 mm Length free loading area: 1105 mm No. of trays to load: 2 Height free loading area: 900 - 920 mm Max diameter of web roll: 250 mm Diameter of web roll mandrel: 76 mm (3'') Machine main movements: Electrical Microprocessor Control: PLC-Reepack Control panel: Digital Control Vacuum pump: 40 m3/ h Electrical supply: 3 / N / PE AC 400 V 50 Hz Electrical power: 5 Kw / 12,9A Overall Construction: Stainless-Steel Automatic out-feed conveyor (optional) Photocell for printed film Liquid filter and powder Different electrical supply
