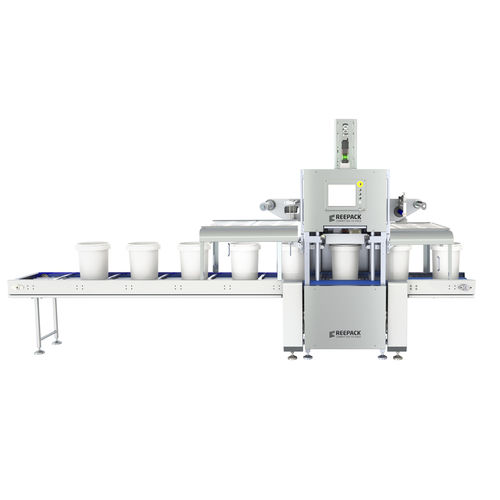

Linear array tray sealer REEPAIL

automaticwith modified atmosphere packaging

Automatic tray sealer SINGLE DIE-SET suitable for both artisanal and industrial productions. Ideal for packaging of bulk products in pail containers or large trays with depth up to 390 mm. Working in ambient sealing or modified atmosphere (MAP). Single or Multi-lane infeed conveyor. Tray transport by pushing rods guided on both sides by motor-driven chains. Step by step movement with controlled speed to adapt to any type of tray, specific product, or production environment. Special servo-driven motion of bottom vacuum chamber combined with pneumatic sealing and cutting in the upper part for the most efficient and reliable packaging output with the lowest maintenance cost on the market. Robust stainless steel frame and structure for high machine durability and ideal hygienic conditions. Overall rating IP 65. ReePail consumes very little compressed air saving you money in both power consumption and general maintenance; and thus, increasing return on investment. Machine height: 2500 mm Machine width: 1150 mm Machine length: 900 mm infeed conveyor length: from 1000 to 5000 mm Length free loading area: from 1000 to 5000 mm Height free loading area: 750 mm - 780 mm Max diameter web roll: 280 mm Diameter of web roll mandrel: 75 mm (3") Machine main movements: Electromechanical Microprocessor Control: PLC-Siemens Control panel: Touch-screen Vacuum pump: 300 m3/ h Electrical supply: 3/N/PE 400V AC 50 Hz Electrical power: Max 14 Kw / 25 A Compressed Air (6 BAR): Depends on the setting Overall Construction: Standard Reepack Machine production speed: Heat sealing from 6 to 8 cycles/min
