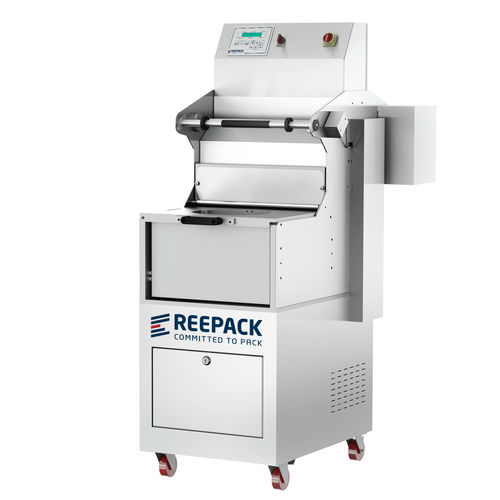

Linear array tray sealer REETRAY 25 VGM PAIL

semi-automaticwith modified atmosphere packaging

The Semiautomatic machine ideal for MAP Packaging of PAILS. Heavy duty construction and the most reliable semiautomatic machine in the market.Designed only in mobile stand on wheels and available with a vacuum pump by 60 cbm. High performance and reliability in every working condition: medium or high production. User-friendly operator panel allow to set and recording different programs, Vacuum and gas setting also with over-pressure and multi-cycle available as standard. Automatic film waste recovering and available optional as photo-cell or micro-perforetor makes the machine complete for a better packaging. Overall dimensions: 710 x 1080 x h 1600 mm Weight: Ca. 215 Kg Max tray dimensions: Ø305 mm Max tray depth: 270 mm Max diameter of film roll: 300 mm Max width of film sealing: 470 mm Diameter of film support shaft: 70 - 76 mm Vacuum pump: 40 - 60 m3/ h Electrical supply: 3/N/PE 400V AC-50Hz (Different kinds by request) Power consumption: Max 4,2 KW Compressed air: 6 bar - 7 Nl / c Photocell centering for printed film Liquid filter and powder Silenced air compressor
