Smartphone Assembly System LCD, back cover to the phone

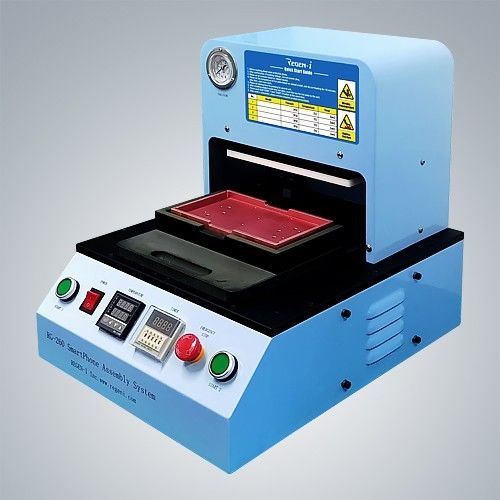

Smartphone Assembly System RG-260
Semi-assembled rear cover or LCD with mobile phone is placed onto jig RG-2601 which is different according to model,
by recommended pressure, temperature and time, press main mobile phone body with them together to complete assembly to
make as close as possible with production condition of water-proof phone or well-assembled condition of phone
How to use RG-260
Check input voltage and connect power cable and turn on main power, then machine automatically increase temperature
to setting temperature (in green) and built-in air compressor automatically work to fill in built-in air tank and cylinder is
ready to work (factory time setting is 22 seconds, temperature is 120 celsius degrees, by pushing button to
adjust setting value) User should wait until temperature value in red (the present value) is the same as target value( in green)
and pressure gauage needle in red display 40~43PSI , do not press any button and wait.
( Roughly about 10 minutes is required)
Smartphone Assembly System RG-260
1. Please wear protective glove and do not touch heating plate (in red) and place mobile phone onto RG-2601 jig
(in white: Teflon, in balck: Silicon) by pulling sliding plate in black and caution location of side switch.
Smartphone Assembly System RG-260
2. When you place white jig, you do not need to fasten jig with screws, but silicon jig require fastening by screws,
White jig has steel pin at 4 sides to avoid deformation and material is Teflon which can withstand high temperature
