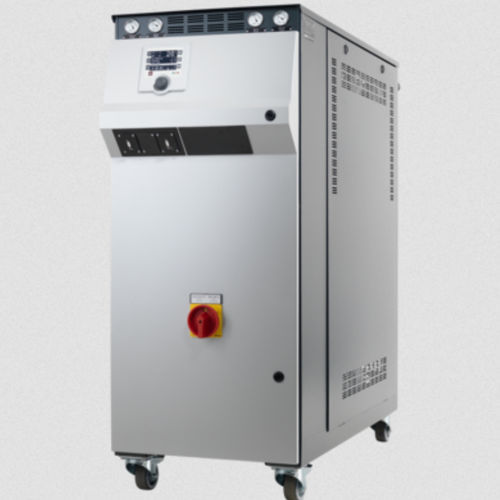

Water and oil circulation temperature control unit 300LDhigh-temperatureIP54cooling
Add to favorites
Compare this product
Characteristics
- Type
- water and oil circulation
- Protection level
- high-temperature, IP54
- Use
- cooling, heating, for injection molding machines, for plastic moulding
- Maximum temperature
Max.: 300 °C
(572 °F)Min.: 0 °C
(32 °F)
Description
-Control system RT200 or RT100
-High heating capacity max. 80 kW (2 x 40 kW)
-Pump with high flow rate: 90 l/min per circle
-Leak-free pump with magnetic coupling
-Solid-state relay instead of heating contactor
Standard equipment
-RT100 control system
-Solid-state relay (SSR) instead of heating contactor
-Unit in IP54 protection degree
-Second level
-Leak-free pump
-Filter in the main circuit
-Filter in cooling water circuit
-Water circuit of non-rusting materials
-Pressure gauge outlet
-Pressure gauge inlet
Options
-Cooler with bypass circuit
-Electronic flow measurement
-Optional with second RT100 control system
-Optional with RT200 control system
