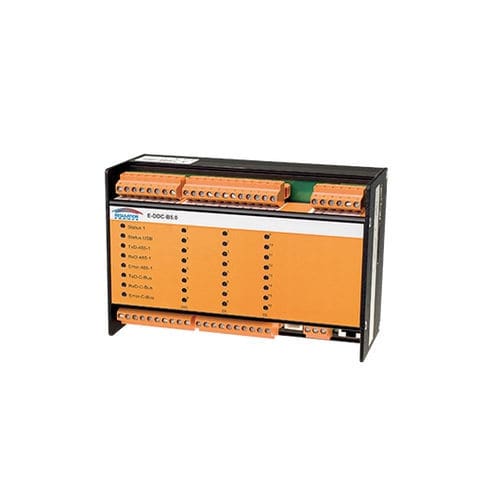

HVAC PLC E-DDC-B5.0

DIN railinputsoutputs

communication : – 1 RS485 Modbus RTU (master/slave) communication bus, BACnet MS/TP (1000 BACnet objects), A-bus, B-bus and E-bus modules (master/slave), web configuration, programming, service, FTP… – 1 C-bus for remote module connection – max. 22 modules per C-bus – 1 USB port, service interface (type B) for configuration – RJ45 interface for screen connection Inputs: 16 digital inputs 8…28VAC, 12…36VDC, with potential Integrated outputs: 8 digital relay outputs 250VAC – NO 5A max., NC 3A AC1 max. Connections: 1 USB port - 1 E-HMI connection Power supply: 24VAC/VDC – 50/60Hz Dimensions: 165 x 108.5 x 77mm Casing: metallic, robust, industrial design Dimensions (with DIN rail): 84.5 x 108.5 x 77mm Case: Aluminum, deep black RAL 9005 Mounting: on DIN rail Protection rating: IP20
