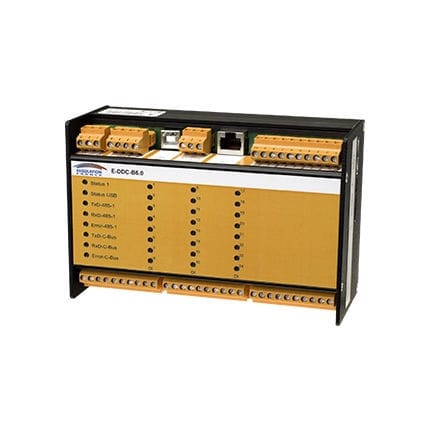

DIN rail PLC E-DDC-B6.0inputsoutputsanalog outputs
Add to favorites
Compare this product
Characteristics
- Type
- DIN rail
- Input/output
- inputs, outputs, analog outputs
- Network
- RS485, Modbus RTU
- Other characteristics
- rugged
- Applications
- for HVAC
Description
communication :
– 1 RS485 Modbus RTU (master/slave) communication bus, BACnet MS/TP (1000 BACnet objects), A-bus, B-bus and E-bus modules
– 1 C-bus for remote module connection – max. 22 modules per C-bus
– 1 USB port, service interface (type B) for configuration
– RJ45 interface for screen connection
Inputs: 24 digital inputs 8…28VAC, 12…36VDC, with potential
Integrated outputs: 4 analog outputs 0…10VDC – 10mA max.
Connections: 1 USB port - 1 E-HMI connection
Power supply: 24VAC/VDC – 50/60Hz
Dimensions: 165 x 108.5 x 77mm
Casing: metallic, robust, industrial design
Dimensions (with DIN rail): 84.5 x 108.5 x 77mm
Case: Aluminum, deep black RAL 9005
Mounting: on DIN rail
Protection rating: IP20
