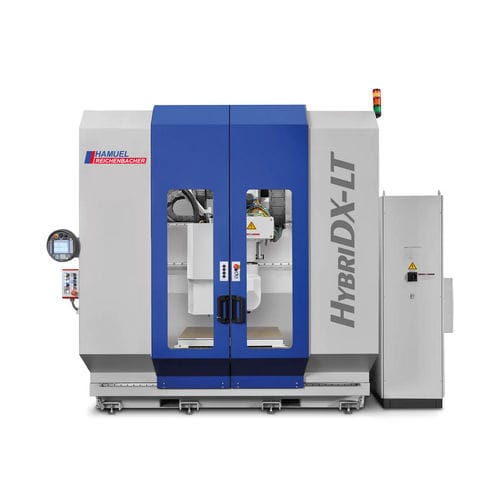

Steel 3D printing machine HybriDX-LT series

industrial5-axishybrid

The Hybri­DX-LT com­bi­nes indus­tri­al 3D prin­ting with pre­cise 5-axis machi­ning, which can be car­ri­ed out both during and after the prin­ting pro­cess, to ensu­re maxi­mum accu­ra­cy and first-class sur­face qua­li­ties. This sys­tem is also ide­al for the pro­duc­tion of lar­ge-volu­me com­pon­ents, such as faça­de ele­ments, form­work for the con­s­truc­tion indus­try or cas­ting and pres­sing molds in mold making. It also enables the effi­ci­ent and cost-effec­ti­ve pro­duc­tion of pro­to­ty­pes as well as small and lar­ge series. Machine variants ECO-LT basic machi­ne: Low-vibra­ti­on por­tal frame with sta­tio­na­ry machi­ning table on a sta­ble sub­s­truc­tu­re. A pro­tec­ti­ve cabin inclu­ding cei­ling ele­ment enc­lo­ses the machi­ne com­ple­te­ly. Two ver­si­ons of equip­ping the unit and a tool chan­ger with 7 places satis­fy most diver­se cus­to­mer requirements. Prin­ting table: Per­ma­nent prin­ting pla­te (sur­face) Base pla­te from cast aluminium Pla­te mil­led (level or with grooves) Steel bars with fit­ted and threa­ded bushes Extruder Sub­se­quent to their fusing in the extru­der, a nozz­le depo­sits the fused pel­lets on the build-pla­te/prin­ting table in layers. Milling aggregates The car­da­nic 5-axis working head pro­vi­des for an under­cut of up to 46° and can be equip­ped with dif­fe­rent head ver­si­ons. This per­mits the high-pre­cis­i­on three-dimen­sio­nal machi­ning of free-form sur­faces and con­tours during and after 3D printing.
