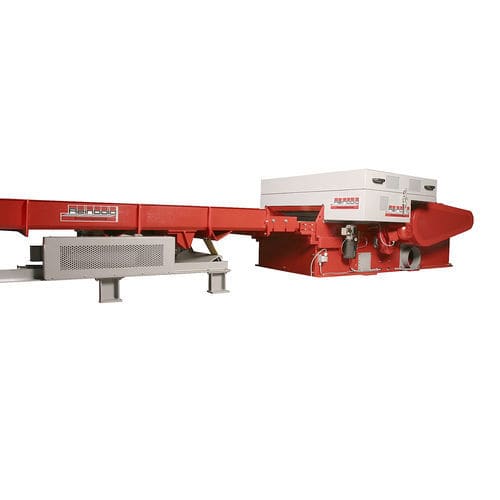

Wood shredder RHZ seriessingle-shaft
Add to favorites
Compare this product
Characteristics
- Number of shafts
- single-shaft
- Application
- for wood
- Power
Max.: 110,000 W
Min.: 22,000 W
- Output
1,800 kg/h, 2,300 kg/h, 3,000 kg/h, 3,500 kg/h, 4,000 kg/h
(3,968 lb/h, 5,071 lb/h, 6,614 lb/h, 7,716 lb/h, 8,818 lb/h)- Rotor diameter
354 mm, 500 mm
(14 in, 20 in)- Operating weight
1,800 kg, 2,400 kg, 3,000 kg, 4,000 kg, 5,000 kg
(3,968.3 lb, 5,291.1 lb, 6,613.9 lb, 8,818.5 lb, 11,023.1 lb)
Description
For shredding long and short timber, chipboard, packages and stripes, horizontal shredder series RHZ plus are used. Because auf the special link chain feeder the materials can also be supplied to the rotor in packets. Through a vibrating trough which has the same width as the horizontal shredder, the material to be crushed is offered and fed to the rotor. The material stack is captured by the chain belts, compressed and then fed to the rotor. The feed is load-based controlled. For higher throughput a rotor model with 482 mm diameter is available.
