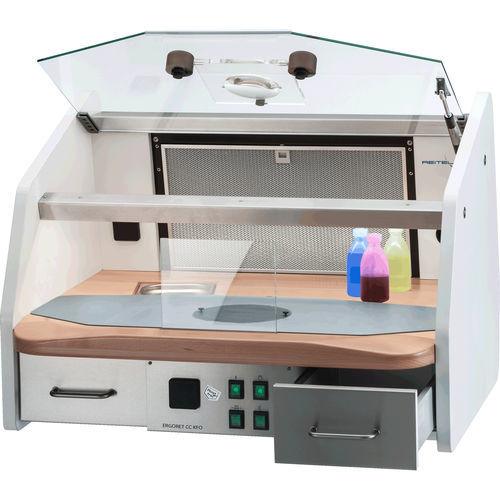

Laboratory workstation ERGORET CC KFO

for medical applicationsergonomicheight-adjustable

Short description

• Orthodontic workstation for health-protecting treatment of synthetic materials

Description
The ERGORET CC KFO orthodontic workstation is engineered for safe handling and processing of synthetic materials in dental laboratories and orthodontic practices. Two integrated extractors remove dust and methyl methacrylate (MMA) vapours through activated carbon filters, keeping the working area free of harmful contaminants. The unit is fitted with a hardwood worktop, a large protective glass screen and a hinged 4-diopter magnifying glass to ensure clear visibility during precision tasks.

The workstation can be connected to multi-place suction systems, central suction or DUSTY suction units. Optional accessories such as the VARIO lifting table enable ergonomic height adjustment to reduce operator strain. Practical extras include an anti-slip rubber mat, handpiece adapter, two drawers and a stainless steel tray.

Technical features

• Hardwood worktop and protective glass cover
• Anti-slip rubber mat
• Handpiece adapter
• Two drawers and stainless steel tray
• Trap for coarse waste
• Hinged magnifying glass (4 diopters)
• LED lighting
• Line voltage: 230 V / 50–60 Hz
• Power consumption: 120 W
• Dimensions (H/W/D): 670 / 925 / 860 mm
• Weight: 60 kg
• Compressed air: max. 8 bar
• Housing: stainless steel, wood white
• Order-No.: 14805000

Characteristics / specifications

• Application: Health-protecting treatment of synthetic materials in laboratories and orthodontic practices
• Extraction: Two integrated extractors with activated carbon filters (dust and methyl methacrylate vapours)
• Compatibility: Connectable to multi-place suction units, central suction systems or DUSTY suctions
• Optional accessory: VARIO lifting table for ergonomic height adjustment
• Extras: Hinged magnifying glass (4 diopters), anti-slip rubber mat, handpiece adapter, two drawers, stainless steel tray, trap for coarse waste
• Lighting: LED
• Electrical: 230 V / 50–60 Hz, 120 W power consumption
• Dimensions (H/W/D): 670 / 925 / 860 mm
• Weight: 60 kg
• Compressed air: max. 8 bar
• Housing material/finish: Stainless steel, wood white
• Order number: 14805000
