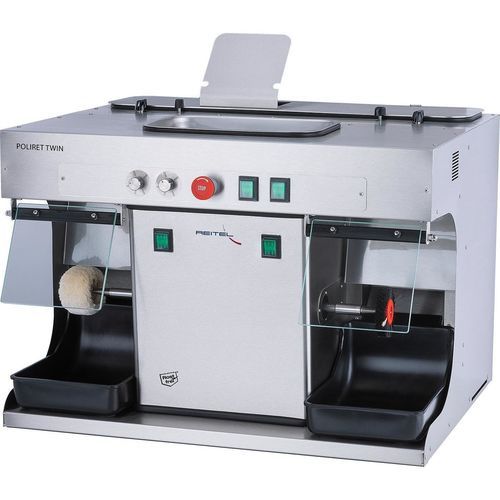

Metal polishing machine POLIRET TWIN

for plasticsindustrialelectric

Description
The POLIRET TWIN is a two-spindle polishing unit with two separate motors and fully variable speed control from 800 to 4,500 rpm. It is designed for grinding, polishing, cleaning and brushing of metal and plastic parts in laboratory and industrial bench applications.
The integrated extraction uses washable fleece filter bags for dust separation and reuse. LED lighting provides shadow‑free illumination of the work area. Safety equipment includes protective screens, safety glasses and an easily accessible emergency stop with safety fuse.
Special versions (e.g. without integrated extraction for connection to a central extraction) are available on request. The optional Vario-lifting table provides ergonomic, individual height adjustment.

Technical features

• Fully variable speed control
• Two stainless steel spindles
• LED work area lighting
• Two separately adjustable extraction channels
• Easy-change fleece filters, machine washable at 40 °C
• Emergency stop button
• Storage tray
• Line voltage: 230 V/50-60 Hz
• Motor power: 2×370 W (POLIRET TWIN)
• Extraction power: 400 W
• Dimensions (H/W/D): 500+100/730/560 mm
• Weight: 60 kg
• Variable speed: 800–4,500 rpm
• Extraction capacity: 800 m3/h
• Housing: stainless steel
• Order-No.: 12703000

Characteristics / specifications

• Product name: POLIRET TWIN
• Model variants: POLIRET TWIN; POLIRET TWIN (with speed indicator)
• Number of spindles: 2 (each with separate motor)
• Motor power: 2 × 370 W
• Extraction motor power: 400 W
• Extraction volume: 800 m3/h
• Speed range: 800–4,500 rpm (variable)
• Power supply: 230 V / 50-60 Hz
• Housing material: stainless steel
• Lighting: LED
• Filters: fleece filters, machine washable at 40 °C
• Dimensions (H/W/D): 500+100 / 730 / 560 mm
• Weight: 60 kg
• Order number: 12703000
