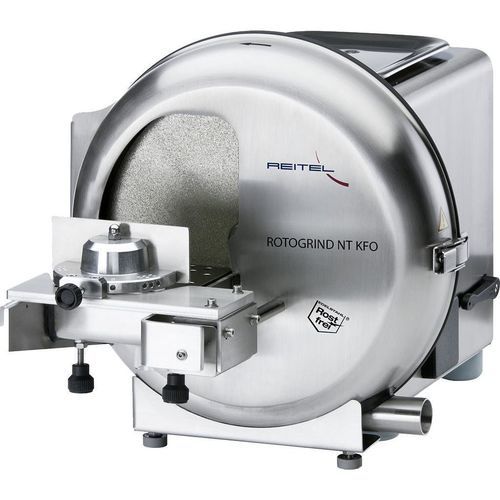

Trimming machine ROTOGRIND NT KFO

Description
The orthodontic angulation table is designed to grind precise angles on maxillary and mandibular models using a mounted slider for controlled positioning.
It provides a high degree of freedom for accurate contouring through smooth axial movement combined with lateral adjustment of the end stop along the model platform, allowing the full surface of the grinding disc to be used. The table can be swung away from the work area when not required.
Models can be positioned precisely using an optional laser guide.

Product overview

• Trimmer with orthodontic angulation table, incl. fully coated diamond grinding disc
• High degree of freedom for exact contouring
• Smooth axial movement with lateral end-stop adjustment
• Table can be moved away to use the unit as a standard trimmer

Accessories

• Laser guide ROTOGRIND NT (optional)
• Fully coated diamond grinding disc 280 mm

Technical specifications

• Variable angle adjustment with locking positions
• Smooth axial movement
• Lateral adjustment for full use of grinding-disc surface
• Table can be swung away when not in use
• Extra-large grinding-disc opening (120 mm) for comfortable access
• Designed for working on maxillary and mandibular models
• Housing: stainless steel
• Order No.: 43305000
• Voltage: 230 V / 50-60 Hz
• Power: 1,500 W
• Speed: 3,000 rpm
• Grinding disc diameter: 280 mm
• Dimensions (H x W x D): 350 x 350 x 470 mm
• Footprint (W x D): 200 x 250 mm
• Weight: 22 kg
