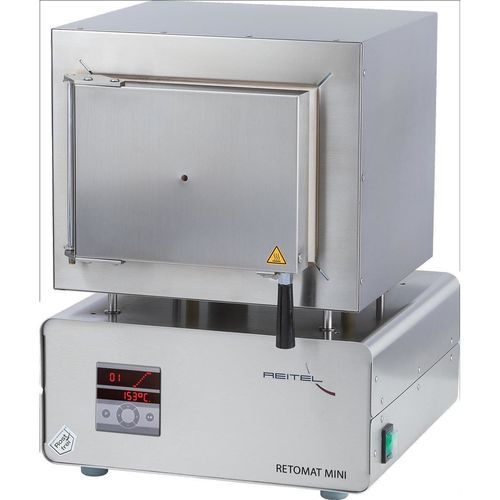

Chamber oven RETOMAT MINI COMFORTholdingelectricstainless steel
Add to favorites
Compare this product
Characteristics
- Configuration
- chamber
- Function
- holding
- Heat source
- electric
- Other characteristics
- stainless steel, benchtop, laboratory, for precious metals
- Maximum temperature
1,150 °C
(2,102 °F)- Capacity
3.2 l, 5.2 l, 9.2 l
(0.85 gal, 1.37 gal, 2.43 gal)- Width
Max.: 450 mm
(17.72 in)Min.: 165 mm
(6.5 in)- Height
Max.: 660 mm
(25.98 in)Min.: 115 mm
(4.53 in)- Depth
Max.: 720 µm
Min.: 150 µm
Description
Description
The RETOMAT series laboratory furnaces are engineered for precious metal and model casting applications. The RETOMAT MINI is offered with chamber volumes of 3.2 l or 4.5 l. Users can choose between the COMFORT controller for precise multi-step heating and holding programs, and the EASY controller for maintaining a set temperature. The COMFORT controller provides 30 programs with 4 ramps plus a speed program. Uniform temperature distribution is achieved by the four-sided heating spiral system and optimized chamber insulation.
Technical features
Characteristics / Technical specifications
The RETOMAT series laboratory furnaces are engineered for precious metal and model casting applications. The RETOMAT MINI is offered with chamber volumes of 3.2 l or 4.5 l. Users can choose between the COMFORT controller for precise multi-step heating and holding programs, and the EASY controller for maintaining a set temperature. The COMFORT controller provides 30 programs with 4 ramps plus a speed program. Uniform temperature distribution is achieved by the four-sided heating spiral system and optimized chamber insulation.
Technical features
- Four-sided heating spiral; heating rate up to 15 °C/min
- Maximum temperature: 1,150 °C
- Ventilation fan adapter
- Optimized insulation materials
- Upward-opening stainless steel furnace door
- Optional catalytic afterburner to reduce odour and smoke
- Optional extractor fan for reduced emissions
- Stainless steel housing
- Freely selectable programs: 30 programs with 4 ramps + speed program (COMFORT)
- Error indication and door contact switch
- Digital display with date and remaining time
- Automatic start programming
- Programming languages: English and German
- Line voltage: 230 V / 50–60 Hz
- Power consumption: 2,500 W
- Overall dimensions (H/W/D): 540+40 / 390 / 440+200 mm
- Heating chamber dimensions (H/W/D): variants 115 / 180 / 220 mm and 120 / 165 / 160 mm
- Chamber volume: 3.2 l or 4.5 l
- Weight: 32 kg
- Order number (example): 17404001
Characteristics / Technical specifications
- Model: RETOMAT MINI COMFORT
- Application: Laboratory furnace for precious metal and model casting technique
- Chamber volume (variants): 3.2 l, 4.5 l
- Maximum temperature: 1,150 °C
- Heating rate: up to 15 °C/min (four-sided heating spiral)
- Controllers: COMFORT (30 programs, 4 ramps + speed) or EASY (maintains set temperature)
- Display / Controls: digital display, date and remaining time, automatic start programming
- Safety: error indication, door contact switch
- Fan / Extraction: ventilation fan adapter; optional extractor fan; optional catalytic afterburning
- Power: 230 V / 50–60 Hz, 2,500 W
- Dimensions (overall): 540+40 / 390 / 440+200 mm
- Heating chamber dimensions: 115 / 180 / 220 mm and 120 / 165 / 160 mm
- Weight: 32 kg
- Housing: stainless steel
- Order number: 17404001
