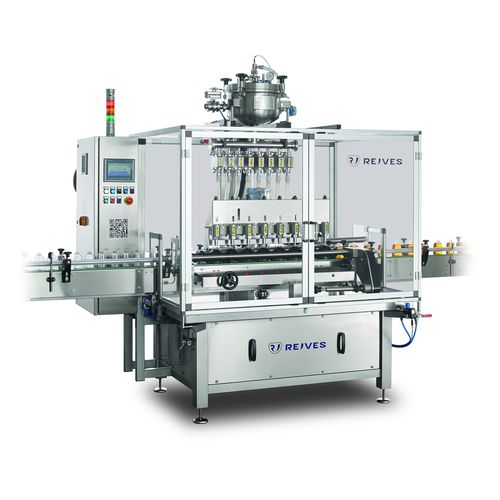

Automatic filling machine MLF-08-FM
bottlefor food productsfruit juice

automatic filling machine
automatic filling machine
automatic filling machine
automatic filling machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Container type
bottle
Product applications
for food products, fruit juice, oil, water, for milk, wine, capping machine
Domain
for the food industry, for the cosmetics industry, for the chemical industry, for the pharmaceutical industry
Type
volumetric, linear, with mass flow meter
Other characteristics
pneumatic, with conveyor
Throughput

Min.: 30 p/min

Max.: 100 p/min

Volume

Min.: 20 ml (0.7 US fl oz)

Max.: 1,000 ml (33.8 US fl oz)

Description

LINEAR FILLING MACHINES THE MACHINE WITH VOLUMETRIC FILLING TECHNOLOGY MOD MLF-08-FM In this section Rejves proposes the linear filling machines that use a volumetric filling technology with flowmeters. Used to fill liquid and viscous products up to 25 liters, at speeds up to 100bpm, they are suitable for food products, cosmetics, home-care products and personal care, industrial oils TECHNICAL DATA > Speed from 30 Bpm up to 100 Bpm > Filling volume from 20ml up to 1000ml > Suitable to fill liquid, thik and foamy products with nozzles that enter the bottle and follow the filling level > Quick change format with easy adjustment and fast substitutions > Magnetic or mass flowmeters > Valves with pneumatic control > Nozzles with membrane seals to FDA standards completely in AISI 316L > Customized user interface > 40lt tank pressurized to 0,5 BAR complete with temperature probe, safety valve, sphere for internal washing and level sensor > Automatic height regulation > Base completely in AISI 304 > Diptray to collect washing product > Internal and external CIP THE BENEFITS OF USING IT Rejves pays great attention to the creation of its machineries, developing highly technological solutions, which are able to improve the efficiency of customers production systems. Thanks to this approach, the MLF-08-FM model proposed here is a linear filling machine that offer the advantage to use less parts for change format. Furthermore, offers benefits concerning the following aspects: > Possibility to combine it in monoblocks with linear or rotary capping machines > It can be supplied in the version with volumetric dosage syringes, ideal for very dense products, flow meters and mass dosers
