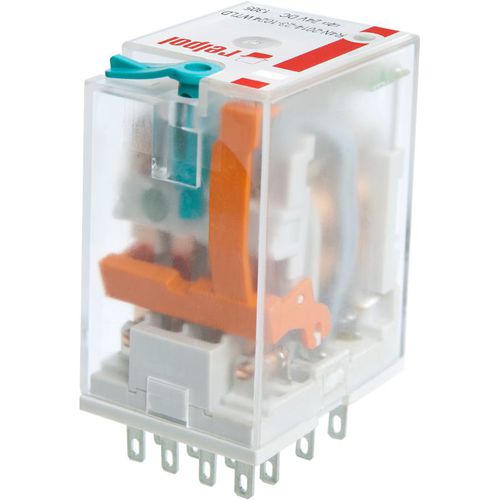

110VDC electromechanical relay R4N series24 Vdc480VAC12 Vdc
Add to favorites
Compare this product
Characteristics
- Control voltage
- 110VDC, 24 Vdc, 480VAC, 12 Vdc, 115VAC, 6VDC, 48VDC, 5 VDC, 60VDC, 220 Vdc, 220VAC, 24VAC, 110VAC, 12VAC, 6VAC
- Mounting
- PCB, panel-mount
- Function
- power
- Terminal strip
- plug-in
- Other characteristics
- with LED indicator
- Switching current
Min.: 5 mA
Max.: 7,000 mA
- Output voltage
24 V, 120 V, 230 V, 250 V
- Output current
Min.: 0.1 A
Max.: 7 A
- Width
21 mm
(0.83 in)
Description
Contacts: 4 CO; coils AC or DC; for plug-in sockets and PCB; mechanical indicator, LED (option); test button
Technical info
Coil data
Rated power consumption :AC: 1,6 VA; DC: 0,9 W
General data
Electrical life resistive AC1 :>5 x 104
Mechanical life (cycles) :>2 x 107
Ambient temperature operating :AC: -40...+55 oC; DC: -40...+70 oC
•Relays of general application
• For plug-in sockets: on 35 mm rail mount acc. to EN 60715; on panel mounting; with terminais for soldering
•PCB version available - AC and DC coils, insulation class F: 155 °C WT (mechanical indicator + lockable front test button) - standard features of relays.
•Relays may be provided with the test buttons (no latching) and plugs - page 13
•Hâve obtained LR Tÿpe Approval Certificate (Lloyd’s Register)
•Récognitions, certifications, directives: RoHS
