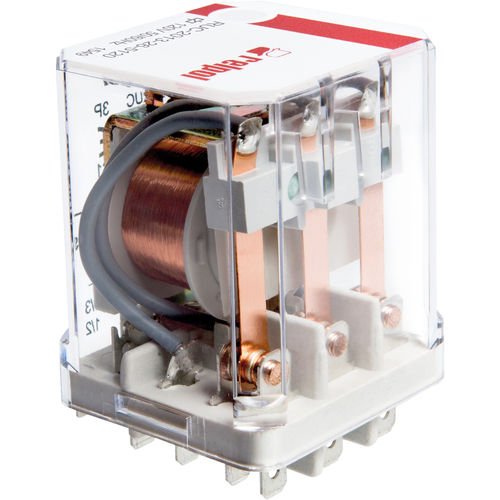

24VDC electromechanical relay RUC series

AC2 NO3 NO

Contacts: 2 CO, 3 CO, 2 NO, 3 NO or 2 NO, 3 NO (with contact gap 3 mm); rated load AC1 – 16 A/250 V AC or 10 A/400 V AC; coils AC or DC; indicator LED (option); test button (option) Technical info Contact data Number and type of contacts :2 CO, 2 NO, 2 NO, 3 CO, 3 NO, 3 NO with contact gap ≥ 3 mm Rated / max. switching voltage AC :250 V / 440 V Rated load (capacity) :AC1: 16 A / 250 V AC or 10 A / 400 V AC; DC1: 16 A / 24 V DC Coil data Rated voltage :AC: 6, 12, 24, 115, 120, 220, 230, 240 V 50/60 Hz, 400 V 50 Hz; DC: 6, 12, 24, 42, 48, 60, 110, 120, 220 V standard coil ; 12, 24, 48, 110, 220 V reinforced coil Rated power consumption :AC: 2,8 VA 50 Hz; 2,5 VA 60 Hz; DC: 1,5 W; 1,7 W with contact gap ≥ 3 mm General data Electrical life resistive :AC1: >105 16 A, 250 V AC; >105 10 A, 400 V AC Mechanical life (cycles) :>107 •Power relays of general application • AC and DC coils, insulation class F: 155 °C • For plug-in sockets: on 35 mm rail mount acc. to EN 60715; on panel mounting •Versions: PCB; faston 187 (4,8 x 0,5 mm); faston 250 (6,3 x 0,8 mm) •Contact gap: 3 mm (option - only in versions with normally open contacts) • Additional features: K - test button; L - light indicator (LED) •Applications: control of electromagnets; Systems of heating, cooling, ventillation, air conditioning; control with single-phase and three-pha-se motors; catering industry machines and equipment; automation Systems; photoelectric Systems; etc. •Récognitions, certifications, directives: RoHS
